Author: Site Editor Publish Time: 2026-07-12 Origin: Site
Upgrading window and door systems relies heavily on precise material selection. Moving to a thermal break hollow profile is a significant structural decision for fenestration fabricators and architects. Standard solid strips provide basic, baseline insulation. However, hollow configurations significantly lower U-values. They trap air and reduce internal convection effectively.
Yet, a major problem remains in the industry. Not all hollow profiles perform equally well under pressure. Poor extrusion quality often causes structural weak points. Uneven glass fiber distribution or imprecise cavity geometries compromise the entire window assembly. This happens easily under heavy wind loads or extreme thermal stress.
You need a reliable way to assess these critical components. We aim to provide an objective, evidence-based framework here. Engineers and fabricators will learn how to evaluate and shortlist the right profiles. We focus closely on mechanical performance, thermal efficiency, and manufacturing reliability.
Multi-cavity geometries optimize thermal resistance but require stricter dimensional tolerances to maintain shear strength.
Authentic PA66GF25 insulating strips must demonstrate uniform 25% glass fiber distribution to match the linear thermal expansion coefficient of aluminum.
Supplier evaluation should prioritize verifiable quality control standards (e.g., shear strength testing) and Environmental Product Declarations (EPD) over basic aesthetic claims.
Successful implementation requires assessing the strip's compatibility with existing knurling and rolling assembly equipment.
Engineers constantly push fenestration systems to achieve better energy ratings. Solid polyamide strips served the industry well for decades. Today, stringent building codes demand superior performance. This demand drives the shift toward hollow chamber designs.
Hollow chambers fundamentally change how window frames handle heat. A solid piece of polyamide conducts heat slowly. However, it still offers a continuous, unbroken path for thermal energy. Hollow chambers disrupt this continuous thermal bridge entirely. They introduce enclosed air pockets into the cross-section. Air acts as an excellent insulator when trapped. These enclosed spaces restrict internal air circulation. Convection drops significantly. Heat transfer slows down drastically from the exterior frame to the interior frame.
Baseline thermal transmittance improves immensely when you switch profiles. Let us assume identical extrusion widths for a fair comparison. A 14.8mm solid shape behaves very differently than a 14.8mm hollow C-shape. The hollow design achieves noticeably lower U-factors.
Profile Configuration (Identical Width) | Structural Mass Density | Internal Convection Level | Thermal Transmittance Impact |
|---|---|---|---|
Solid PA66 GF25 | High | Direct Material Conduction | Baseline Insulation standard |
Single-Cavity Hollow | Medium | Moderate internal airflow | Noticeable U-factor reduction |
Multi-Cavity Honeycomb | Optimized | Highly restricted airflow | Maximum insulation performance |
Some fabricators express valid skepticism regarding hollow designs. Adding a hollow cavity naturally reduces total material mass. You might wonder if this reduction weakens the overall structure. It does not have to. Retaining a precise 25% glass fiber reinforcement is absolutely non-negotiable. This specific ratio maintains the necessary tensile strength. It also preserves transverse tensile strength across the profile. The glass fibers reinforce the thin walls of the hollow chamber. They ensure the strip mirrors the thermal expansion rate of the surrounding aluminum.
Evaluating these profiles requires looking beyond basic product brochures. You must scrutinize the actual physical and chemical properties. Extrusion precision defines the difference between a high-performing window and a structural failure.

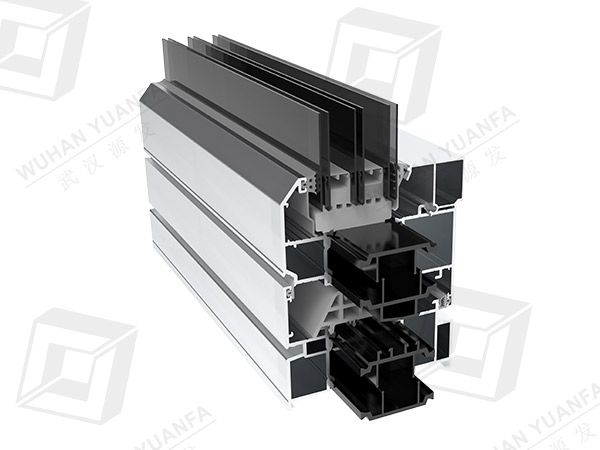

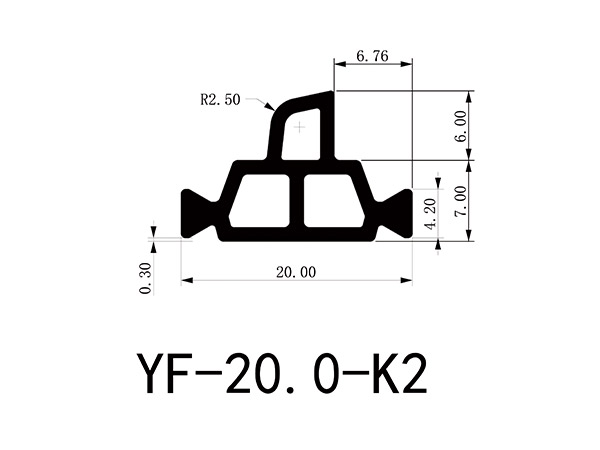

You must assess single-cavity versus multi-cavity designs carefully. Multi-cavity or honeycomb designs trap air into much smaller pockets. This limits internal convection even further than a single large cavity. You should also evaluate patent-specific shapes. Variations like the IC-14.8 mm serve distinct window system depths. Manufacturers design these specific geometries to solve unique condensation issues.
Single-Cavity: Easier to extrude, suitable for moderate climate zones.
Multi-Cavity: Harder to manufacture, ideal for extreme weather environments.
Complex Webbing: Internal ribs distribute stress evenly during the rolling process.
Material purity impacts longevity directly. Recycled materials carry hidden structural risks. Virgin PA66 guarantees consistent molecular bonding. Recycled PA66 often contains unknown impurities. These impurities degrade under sustained ultraviolet exposure. Extrusion techniques dictate glass fiber alignment. Fibers must align parallel to the extrusion axis. This strict alignment provides critical longitudinal rigidity. Poorly aligned fibers create brittle sections along the profile length.
Precision matters immensely during the extrusion process. Acceptable deviation margins must stay incredibly tight. They typically sit at ±0.05mm for high-end architectural applications. Improper tolerances cause severe factory issues. They lead to loose fits inside the aluminum profile cavity. A loose fit causes shear failure during the rolling process. If the strip sits too tight, it will crack under the pressure of the rolling machine.
You cannot judge a thermal strip by visual inspection alone. Engineering teams must rely on standardized physical testing. Proper verification protocols prevent costly field failures after installation.
Buyers must request industry-standard test results from suppliers. Ask for characteristic shear strength data specifically. You need numbers recorded before and after thermal aging tests. Authentic PA66GF25 insulating strips endure these extreme tests without significant degradation. The bond between the aluminum and the polyamide must remain solid. Subjecting samples to cyclic heating and cooling reveals the true quality of the extrusion.
High wind loads push window assemblies to their absolute limits. Dynamic building movements add even more mechanical stress. The strip must hold the heavy aluminum extrusions together securely. Transverse tensile strength measures this exact holding capability. If the hollow walls are too thin, they will tear under transverse stress. Engineers must specify strips designed to handle the exact wind load requirements of their specific project location.
Polyamide 66 absorbs moisture from the environment naturally. This absorption alters the material's physical dimensions slightly. It also impacts its brittleness. Top-tier suppliers account for this phenomenon during manufacturing. They adjust their dimensional stability specifications accordingly. Ensure your supplier conditions their test samples properly. Testing dry, freshly extruded strips yields artificially rigid results. Conditioning brings the material to its natural equilibrium state. This state reflects real-world operational conditions.
Modern construction projects demand rigorous documentation. Architects specify materials based on environmental impact and regulatory compliance. You must ensure your supplier meets these strict modern standards.
Requesting an EPD is becoming standard practice worldwide. Commercial projects demand strict environmental accountability. An EPD verifies the Life Cycle Assessment (LCA) of the material. It clearly outlines the carbon footprint of the extrusion process. Supplying EPD documentation helps architects achieve LEED or BREEAM certifications. Suppliers lacking this documentation often lose bids on major commercial developments.
You should check supplier data against recognized global standards. EN 14024 serves as a primary international benchmark. It dictates precise requirements for metal profiles utilizing thermal barriers. Compliance ensures your products meet strict international building codes. It also guarantees a baseline level of structural safety. Reject suppliers unwilling to provide formal EN 14024 testing certificates.
Internal marketing claims mean very little in structural engineering. Third-party lab reports carry real authoritative weight. Look for NCBI-backed material stress tests or similar independent validations. Independent validations build true trust. They prove the supplier uses authentic raw materials. They also confirm the exact 25% glass fiber ratio claimed on the technical data sheet.
Theoretical performance means nothing if the product fails on the factory floor. Fabricators face distinct operational risks when switching to hollow geometries. You must adapt your assembly processes to handle these advanced profiles.
Inspection protocols upon delivery must be rigorous. You should inspect sample batches for common extrusion defects actively.
Micro-cracking: Look closely at the inner cavity walls under strong lighting. Micro-cracks lead to structural shearing.
Surface Porosity: Pitted surfaces indicate moisture contamination during the raw material melting phase.
Warped Edges: Wavy edges indicate poor cooling control. These will not slide into the aluminum cavity smoothly.
Uneven Wall Thickness: Asymmetrical internal walls create weak points during the rolling process.
Factory floor realities dictate final success. A hollow profile faces intense crushing forces during assembly. The rolling machine applies massive downward pressure to crimp the aluminum. The profile must withstand this force without collapsing. Internal cavities need robust ribbing to survive. If the hollow profile crushes, the thermal barrier breaks. This ruins the entire window frame.
A reputable manufacturer offers active technical support. Evaluate if they provide specific setup guidelines for your machines. Rolling machine calibration changes significantly for hollow geometries. Pressure settings require immediate downward adjustments. Solid strips handle aggressive pressure easily. Hollow strips require a gentler, more precise touch. Knurling wheel specifications might also need an upgrade. Deeper knurling provides better grip without requiring excessive rolling pressure.
Selecting the right PA66 GF25 hollow thermal strip requires careful evaluation. You want to maximize thermal efficiency through clever cavity design. At the same time, you must maintain absolute structural integrity. Exceptional material precision makes this balance possible.
Take specific action steps before committing to a bulk order:
Request detailed Technical Data Sheets (TDS) outlining exact mechanical limits.
Demand 300mm physical samples for visual inspection.
Run internal rolling machine tests on your factory floor to verify crush resistance.
Require third-party shear strength certifications to validate the supplier's claims.
These actions help you finalize a reliable supplier shortlist safely. They protect your manufacturing process from costly structural failures down the line.
A: The ideal wall thickness balances two competing engineering needs. It must be thick enough to prevent cavity collapse during the rolling assembly process. However, it must remain thin enough to minimize thermal mass. Most high-quality hollow profiles maintain a strict wall thickness between 1.5mm and 2.0mm. This range ensures optimal shear strength while keeping heat transmittance exceptionally low.
A: A properly engineered multi-cavity design does not weaken shear strength. The engineering reality relies entirely on precision. Properly extruded internal ribbing redistributes mechanical stress evenly across the entire profile. Weak points only occur during sub-standard extrusion processes. Poor cooling or incorrect glass fiber alignment will compromise the internal walls, leading to severe structural failures under pressure.
A: Visual inspections cannot confirm actual glass fiber content. You must ask the supplier for independent material composition analyses. Request third-party density testing reports as well. Polyamide 66 reinforced with 25% glass fiber has a very specific density signature, typically around 1.30 g/cm³. Deviations from this precise metric strongly indicate improper filler ratios or lower-grade materials.
A: Yes, they are highly compatible. Standard equipment handles them perfectly well, but you must recalibrate your machines first. Hollow profiles offer different mechanical resistance compared to solid strips. You need to adjust the rolling pressure downward slightly. Applying solid-strip pressure levels directly to a hollow profile often crushes the internal cavities and ruins the thermal barrier completely.
