Author: Site Editor Publish Time: 2026-07-29 Origin: Site
Commercial and residential energy codes, such as ASHRAE 90.1 and IECC, continue to grow more stringent every year. As a result, modern fenestration specification is rapidly shifting away from basic thermal isolation. We now must focus heavily on precise, engineered thermal management across the entire building envelope.
Specifiers often assume maximizing the width of a thermal break provides the default solution for improving U-values. However, blindly increasing this width without considering application-specific structural demands creates severe issues. You risk catastrophic extrusion failure, compromised shear strength, and heavily inflated material requirements.
Fortunately, you can establish a robust framework for specifying the exact dimensions required for specific fenestration systems. We will explore how to perfectly balance thermal performance, structural integrity, and material science. You will learn actionable strategies to select the right separation widths for your windows, doors, and curtain walls.
The optimal thermal break width is a compromise between required U-factor reduction and the necessary structural spanning capability.
Standard aluminum windows typically utilize 14.8mm to 24mm widths, whereas high-rise curtain walls often require 24mm to 35mm+ to handle wind loads while preventing thermal bridging.

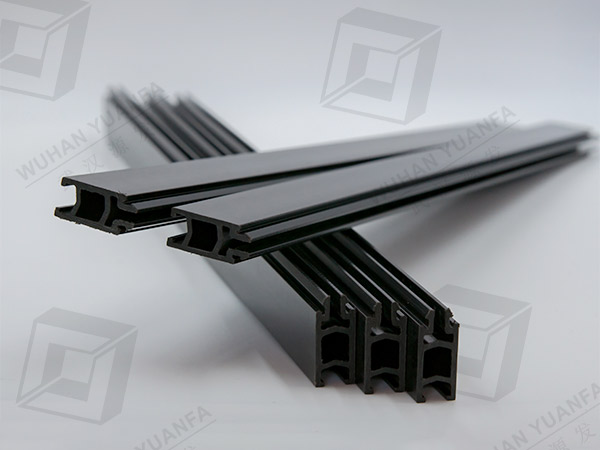

Specifying a glass-fiber reinforced polyamide thermal break is mandatory for maintaining dimensional stability in wider configurations where traditional polyurethane fails.
Upgrading to wider breaks yields diminishing returns on thermal efficiency if the glazing unit (IGU) and framing geometry are not upgraded concurrently.
Achieving aggressive energy targets presents a distinct challenge for architects and engineers. High-performance standards, like Passive House, demand exceptional insulation values. Builders must meet these goals without creating unnecessarily bulky aluminum profiles. They also cannot accept mechanically weak frames. We face a direct, physical conflict between thermal isolation and structural rigidity.
The mechanical reality is straightforward yet unforgiving. Increasing the gap between the inner and outer aluminum extrusions introduces significant risk. A wider gap inherently increases the risk of longitudinal shear. Wind loads, dead loads, and building sway place immense stress on these composite assemblies. The isolation material must bridge this gap while actively resisting shear forces. If the strip cannot transfer loads effectively, the aluminum frame loses its composite action.
You must establish clear success criteria for your fenestration specification early in the design process. Finding the exact "sweet spot" involves balancing competing physics and environmental demands.
The separation must remain wide enough to prevent internal condensation during freezing weather.
The overall profile must meet the stringent U-value targets dictated by local compliance codes.
The component must remain narrow enough to maintain high structural integrity under dynamic loading.
The assembled interior and exterior frames must function mechanically as a single composite unit.
Focusing solely on thermal resistance often leads to critical mechanical failures down the line. You must integrate structural load calculations into your initial thermal design phase to guarantee long-term stability.
Different fenestration systems endure vastly different mechanical loads and usage patterns. You cannot apply a universal width metric across all system types. Each application demands a tailored approach based on its unique structural environment.
For standard aluminum windows, suitable widths range from 14.8mm to 24mm. This evaluation logic rests on typical building requirements and structural spans. This dimension range easily satisfies standard residential codes. It also successfully meets most light-commercial energy mandates.
Fixed windows do not carry moving sashes. Therefore, they can tolerate slightly wider separations without issue. Operable windows, like casements and awnings, operate differently. They demand higher torsional rigidity. Overly wide gaps in operable sashes lead to hardware misalignment and sagging over time. Hardware hinges put heavily concentrated stress directly on the frame. You should keep dimensions conservative for operable units to maintain smooth long-term operation.
Commercial doors require robust gaps between 20mm and 30mm. High-frequency cyclical loading defines commercial door specifications. People open, close, and slam these doors thousands of times every month. Hardware weight adds significant cantilevered stress to the extrusions.
Heavy hydraulic closers and panic bars pull continuously on the composite frame. Consequently, doors require multi-cavity designs to handle these dynamic forces. Structurally reinforced components are absolutely essential here. They prevent frame warping during sudden impact. Furthermore, they resist extreme temperature fluctuations across the entryway when interior and exterior temperatures clash.
Curtain wall systems typically demand substantial widths from 24mm to 35.3mm. Specialized Passive House enclosures often require even larger dimensions to eliminate thermal bridging entirely. Curtain walls must withstand massive static dead loads. Large insulated glazing units (IGUs) are exceptionally heavy, and this weight transfers directly to the horizontal transoms.
High-rises also experience severe dynamic wind loads and pressure differentials. These pressures cause standard, weakly bonded frames to bow inward or outward. Wide gaps require complex, multi-hollow geometries. These advanced designs ensure flawless structural continuity across the mullions and transoms, protecting the glass from deflection.
Application Type | Recommended Width Range | Primary Structural Challenge |
|---|---|---|
Aluminum Windows (Operable) | 14.8mm - 20mm | Torsional rigidity, hinge stress, and sash sagging |
Aluminum Windows (Fixed) | 18mm - 24mm | Wind load deflection across moderate spans |
Commercial Heavy Doors | 20mm - 30mm | High-frequency cyclical impact and hardware weight |
Curtain Wall Systems | 24mm - 35.3mm+ | Massive dynamic wind loads and IGU dead weight |
Material science dictates how wide you can safely stretch a frame gap before it fails structurally. Two primary solution categories exist in the market. Pour-and-debridge polyurethane systems are common in older or basic architectures. Extruded polyamide strips represent the modern, high-performance alternative.

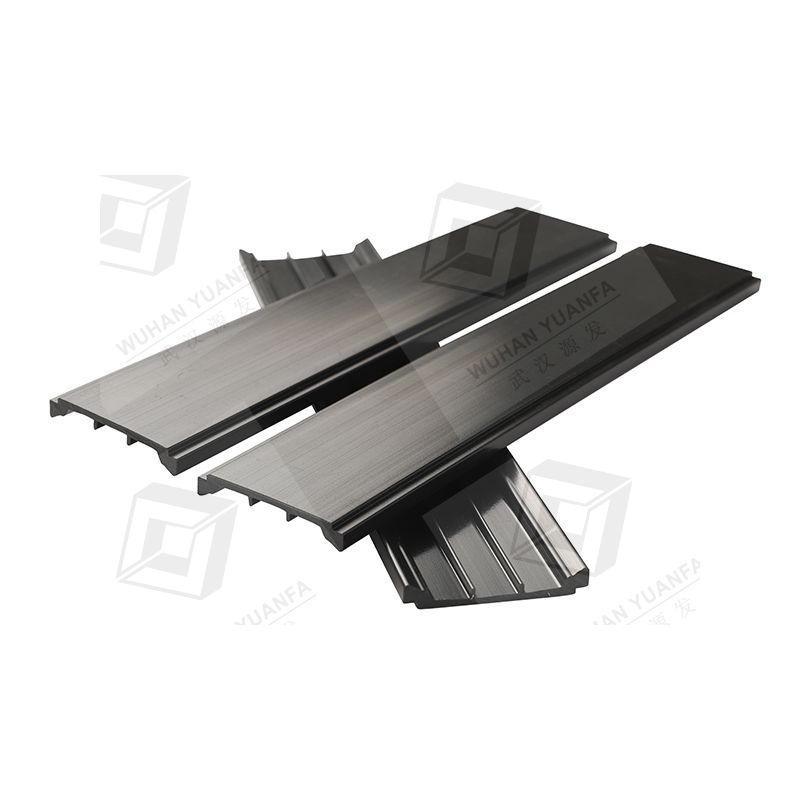

The polyamide advantage becomes undeniable in wider applications. A polyamide thermal break is typically reinforced with 25% glass fiber. This specific proprietary mixture yields a critical engineering property. It shares nearly the exact Coefficient of Linear Thermal Expansion (CLTE) as structural aluminum. When the sun heats the exterior metal, the outer frame expands. The glass-fiber reinforced polyamide expands at the exact same rate, minimizing internal shear stress.
This thermal alignment defines daily implementation reality. Fabricators rely heavily on this predictable behavior. It allows them to safely crimp and roll 35mm+ strips for massive curtain walls. Rolling these wide strips requires massive mechanical force during assembly. The material must survive the knurling and crimping process without cracking.
Using inferior materials at these extreme widths invites immediate disaster.
Standard polyurethane systems often experience severe shearing under high thermal stress.
Differential expansion causes micro-cracking along the critical extrusion interface.
The exterior metal heats up rapidly in direct sunlight and expands much faster than the shaded interior metal.
This lack of composite action eventually leads to catastrophic system failure and water ingress.
Specifying glass-fiber reinforced polyamide eliminates these differential expansion risks entirely, ensuring a permanent mechanical bond regardless of temperature swings.
Specifiers must rigorously evaluate multiple dimensions before finalizing architectural details. Thermal simulation outcomes heavily guide the initial selection process. You must analyze the overall assembly U-value (Uw), which combines the frame and the glass. You must also thoroughly check the Condensation Resistance Factor (CRF).
Do not specify a 35mm strip unnecessarily just because it is available. If a 24mm strip exceeds your local compliance baseline and prevents internal condensation, stop there. Pushing for excessive widths adds needless mechanical vulnerability without delivering meaningful real-world benefits.
Compliance and certifications provide your ultimate structural safety net. You must verify actual physical test metrics. Ensure the composite system meets strict NFRC and AAMA testing standards. Regional building authorities also publish highly specific performance criteria for wind loads and thermal boundaries. Cross-reference your selected dimensions against these localized benchmarks to ensure full compliance.
You must carefully weigh the performance ROI. Transitioning from a basic 14.8mm to a 24mm component is highly effective. It offers a massive, measurable leap in thermal resistance. However, moving from 24mm to 35mm offers severely diminishing returns on efficiency. This aggressive upgrade only makes sense when paired with other advanced components. You must upgrade the glazing to triple-pane units. You must also implement warm-edge spacers. Expanding the frame gap without upgrading the glass wastes valuable resources, as the standard IGU remains the primary thermal vulnerability in the wall.
Translating a conceptual design into a physical reality involves navigating strict manufacturing limitations. Not all extrusion dies accommodate ultra-wide dimensions. Standard factory crimping machines often fail to grasp massive, complex strips correctly. Specifying unsupported or unverified configurations directly leads to extensive project delays. The resulting custom tooling and specialized machinery requirements will severely impact your project schedule.
Vendor vetting requires a highly analytical, data-driven approach. You must look far beyond generalized marketing materials. Do not accept basic material data sheets that only list raw polymer properties. Instead, heavily shortlist manufacturers who provide certified composite shear test data. They must provide pull-out strength metrics specific to the exact dimensions you are evaluating.
A successful pull-out test on a 14.8mm component proves absolutely nothing about how a 35mm component behaves under identical loads. The physics change dramatically as the separation widens.
Take specific next-step actions to protect your building envelope design. Before finalizing any specification, demand rigorous mathematical proof from the supplier. Request standard cross-sectional thermal simulations directly from the manufacturer. THERM modeling software provides exceptional clarity by mapping the exact isotherms through the profile.
Validate how the chosen dimension aligns visually and physically with the framing geometry. Ensure the profile separation matches the specified IGU thickness precisely. Misaligned thermal boundaries create cold bridges. These bridges instantly negate the expensive insulation benefits you are trying to achieve. Aligning the glass spacer with the isolation zone guarantees peak performance.
Thermal separation dimensions cannot exist as standalone metrics. You must engineer them perfectly alongside application type, structural load requirements, and physical material properties.
Prioritize highly stable glass-fiber reinforced polyamide for any demanding structural applications, especially doors and high-rise curtain walls.
Match your advanced profile upgrades with corresponding triple-glazing enhancements. This strategy maximizes your performance ROI and prevents the glass from bottlenecking the system.
Anchor your final architectural specification in verified THERM simulation data and independent physical shear testing.
Never default to the widest available option without first confirming manufacturing capabilities and rigorous structural load tolerances with your chosen fabricator.
A: No. Over-specifying width without upgrading the aluminum profile geometry severely compromises the structural shear strength of the window or curtain wall.
A: Slightly. Wider multi-cavity polyamide strips break the transmission of sound vibrations through the frame, but the primary acoustic barrier remains the IGU specification.
A: Through independent lab testing that measures longitudinal shear strength and transverse tensile strength after thermal cycling, adhering to AAMA TIR-A8 or EN 14024 standards.
