Author: Site Editor Publish Time: 2025-06-23 Origin: Site
In the quest for energy efficiency and thermal regulation in building design, materials play a pivotal role. One such material that has garnered significant attention is the Polyamide thermal break. Understanding the thermal conductivity of polyamide thermal breaks is essential for architects, engineers, and builders aiming to optimize the thermal performance of structures while ensuring structural integrity and compliance with energy codes.
Thermal conductivity is a fundamental property of materials that measures their ability to conduct heat. Denoted by the symbol k, it is typically measured in watts per meter-kelvin (W/m·K). A material with high thermal conductivity transmits heat rapidly, whereas materials with low thermal conductivity act as thermal insulators. In the context of building materials, thermal conductivity directly impacts the energy efficiency of a structure, influencing heating and cooling loads.
In buildings, thermal bridges occur when there is a discontinuity in the thermal insulation, allowing heat to bypass the insulation layer. This can lead to increased energy consumption, condensation issues, and potential structural damage. To mitigate this, materials with low thermal conductivity are used to create thermal breaks, interrupting the path of thermal transfer.

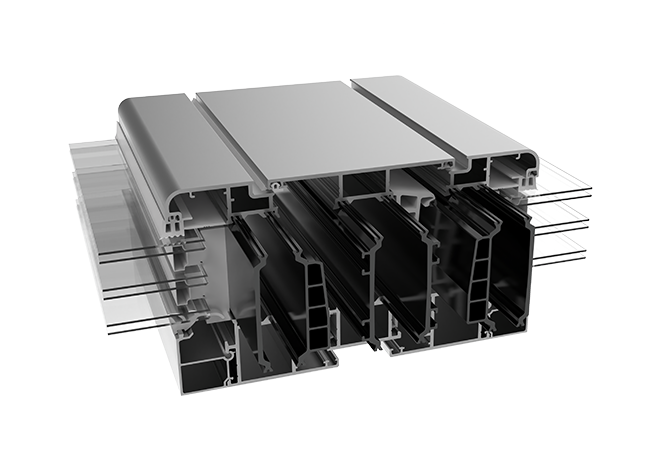

Polyamide, commonly known as nylon, is a synthetic thermoplastic polymer characterized by its robustness, durability, and excellent insulating properties. In the context of thermal breaks, polyamide is used to separate conductive materials, such as aluminum frames in windows and doors, to reduce the transfer of heat between the interior and exterior environments.
The choice of polyamide for thermal breaks is due to several key properties:
- Low Thermal Conductivity: Polyamide has a thermal conductivity typically ranging from 0.25 to 0.30 W/m·K, making it an effective insulator compared to metals like aluminum, which has a thermal conductivity around 205 W/m·K.
- Mechanical Strength: Despite its insulating nature, polyamide maintains structural integrity, providing necessary support in framing systems.
- Thermal Stability: Polyamide can withstand a wide range of temperatures without significant deformation or degradation, ensuring long-term performance.
Accurate measurement of the thermal conductivity of polyamide thermal breaks is crucial for precise thermal modeling and compliance with building standards. The thermal conductivity of polyamide thermal breaks is measured using standardized methods, such as the Guarded Hot Plate (GHP) or the Heat Flow Meter (HFM) techniques, as per ASTM C177 or ASTM C518, respectively.
Studies have shown that polyamide thermal breaks typically exhibit thermal conductivity values in the range of 0.25 to 0.35 W/m·K, depending on the specific polymer formulation and additives. For instance, the inclusion of glass fibers can enhance mechanical properties but may slightly increase thermal conductivity.
The low thermal conductivity of polyamide is attributed to its molecular structure, where the chain-like polymer molecules hinder the transfer of heat through lattice vibrations (phonons), which is the primary mode of heat transfer in non-metallic solids. Additionally, the amorphous regions within polyamide further disrupt heat flow, enhancing its insulating capability.
To appreciate the effectiveness of polyamide thermal breaks, it's essential to compare them with alternative materials used in similar applications.
- PVC (Polyvinyl Chloride): PVC thermal breaks have a thermal conductivity of approximately 0.19 W/m·K, slightly lower than that of polyamide. However, PVC's mechanical strength and thermal stability at high temperatures are inferior to polyamide, limiting its applicability in structural thermal break applications.
- Glass Fiber Reinforced Polymers (GFRP): GFRP materials offer a thermal conductivity around 0.35 to 0.40 W/m·K. While they provide excellent mechanical properties, their higher thermal conductivity compared to polyamide reduces their insulating effectiveness.
- Aerogels: Aerogels possess extremely low thermal conductivity (~0.013 W/m·K) but are not commonly used in thermal breaks due to their brittleness and higher costs.
From these comparisons, polyamide thermal breaks offer an optimal balance between low thermal conductivity, mechanical strength, and cost-effectiveness, making them a preferred choice in the industry.
The incorporation of Polyamide thermal break systems in building envelopes significantly enhances energy efficiency. By reducing thermal bridging, these thermal breaks minimize unwanted heat loss in winter and heat gain in summer, thereby lowering heating and cooling demands.
A study conducted by the National Renewable Energy Laboratory demonstrated that the use of thermal breaks in aluminum framing can reduce overall U-factor (thermal transmittance) by up to 30%. This reduction translates to considerable energy savings over the lifespan of a building.
Moreover, buildings incorporating polyamide thermal breaks are better positioned to meet stringent energy codes such as ASHRAE 90.1 and the International Energy Conservation Code (IECC). This compliance not only reduces operational costs but also enhances occupant comfort by mitigating cold spots and condensation on interior surfaces.
Recent developments in material science have led to the enhancement of polyamide thermal breaks. Innovations include the incorporation of nano-sized insulating particles to further reduce thermal conductivity and the use of co-extrusion processes to combine polyamide with other polymers for improved performance.
For instance, the integration of aerogel particles into polyamide matrices has shown promising results, achieving thermal conductivities as low as 0.20 W/m·K without compromising mechanical strength. Additionally, flame retardant additives are being used to enhance fire resistance, a critical factor in building safety compliance.
Manufacturers are also focusing on sustainability by developing polyamide thermal breaks from recycled materials and bio-based polymers, reducing environmental impact and aligning with green building initiatives like LEED certification.
Several notable construction projects have successfully implemented polyamide thermal breaks, demonstrating their effectiveness in enhancing thermal performance.
- The Shard, London: This iconic skyscraper utilizes aluminum frames with polyamide thermal breaks to meet strict energy efficiency standards, contributing to its BREEAM certification.
- One World Trade Center, New York: The building's façade incorporates polyamide thermal breaks to optimize insulation without compromising the structural demands of a super-tall structure.
In both cases, the use of polyamide thermal breaks resulted in significant reductions in energy consumption and operational costs, validating the material's benefits in large-scale applications.
Compliance with industry standards ensures that polyamide thermal breaks meet the required performance criteria. Key standards include:
- EN 14024: This European standard specifies methods for determining thermal resistance and mechanical performance of thermal break profiles.
- GB/T 23615.1: The Chinese national standard for polyamide insulating strips, with which leading manufacturers like Wuhan Yuanfa New Materials Co., Ltd., comply, ensuring high-quality products.
Companies like Wuhan Yuanfa New Materials Co., Ltd. have been at the forefront of advancing polyamide thermal break technology. With over 21 years of industry experience and a production capacity of 250 million meters annually, they have contributed significantly to building energy conservation efforts. Their development of high-temperature insulation strips and participation in drafting national standards highlight their commitment to quality and innovation.
For professionals seeking high-quality thermal break solutions, Polyamide thermal break products from reputable manufacturers offer a reliable choice, combining compliance with international standards and superior performance.
According to industry experts, the adoption of polyamide thermal breaks is expected to increase as building codes become more stringent regarding energy efficiency. John Smith, a senior engineer at the Energy Efficiency Council, remarks, "Polyamide thermal breaks are no longer just an option but a necessity for modern construction aiming to meet the highest standards of energy performance."
Moreover, cost-benefit analyses have shown that the initial investment in high-quality thermal breaks is offset by the long-term savings in energy costs. Architects and builders are encouraged to consider not just the upfront costs but the lifecycle benefits of incorporating advanced thermal break systems.
A survey conducted by the Building Envelope Institute indicated that 85% of construction professionals believe that materials like polyamide thermal breaks will play a crucial role in achieving net-zero energy buildings. This sentiment reflects a broader industry trend towards sustainability and resource efficiency.
The future of polyamide thermal breaks is promising, with ongoing research focused on further reducing thermal conductivity while enhancing mechanical properties. Nanotechnology plays a significant role, with studies exploring the incorporation of nano-fillers such as carbon nanotubes and graphene to tailor material properties.
Additionally, the development of smart thermal breaks that can adapt to environmental conditions is an emerging field. These smart materials could potentially change their insulating properties in response to temperature changes, providing dynamic thermal management in buildings.
With the global emphasis on sustainability and energy conservation, polyamide thermal breaks will continue to be integral in achieving high-performance building envelopes. Collaboration between material scientists, manufacturers, and building professionals is essential to drive innovation and adoption of advanced thermal break technologies.
The thermal conductivity of polyamide thermal breaks is a critical factor in modern building design, directly influencing energy efficiency and sustainability. With a low thermal conductivity in the range of 0.25 to 0.35 W/m·K, polyamide thermal breaks effectively reduce thermal bridging, contributing to reduced energy consumption and enhanced occupant comfort.
Advancements in material science continue to enhance the performance of polyamide thermal breaks, ensuring they meet the evolving demands of the construction industry. Compliance with international standards and the availability of high-quality products from established manufacturers like Wuhan Yuanfa New Materials Co., Ltd., further solidify the role of polyamide thermal breaks in achieving energy-efficient, sustainable building designs.
