Author: Site Editor Publish Time: 2026-05-08 Origin: Site
Untreated thermal bridging acts as a massive energy leak in modern commercial buildings. In fact, unmitigated thermal bridges account for 20% to 70% of a building's envelope heat loss. This massive energy drain transforms an otherwise efficient design into a major compliance failure and operational liability. Finding the right barrier is critical to stop heat transfer and eliminate condensation risks.
However, many professionals fall victim to the "best" material fallacy. There is no single universal solution. The optimal choice depends entirely on the specific application. You must carefully balance structural loads—such as compressive, shear, and tensile forces—against the required thermal resistance or R-value. Overlooking this balance often leads to structural deflection or compromised insulation.
We will evaluate high-performance materials like thermoset resins, polyurethane, and polyamide thermal breaks to help you match them to specific structural scenarios. You will discover how to engineer the perfect thermal barrier for any building envelope connection.
The Performance Trade-Off: Thermal resistance (R-value) naturally decreases as a material's compressive strength and density increase. Over-specifying strength degrades insulation efficiency.
Material Alignment: Polyamide thermal breaks are the industry standard for continuous line applications (like aluminum windows and facades), while high-density foams and thermoset resins are ideal for point-load structural steel connections.
Engineering Realities: Simply inserting a pad is insufficient. Pads thinner than 1 inch can inadvertently increase heat flow, and fastener selection (e.g., stainless vs. carbon steel) is critical to preventing thermal bypass.
Compliance Value: Specifying the right thermal barrier directly contributes to LEED credits (EA and MR) and ensures compliance with increasingly stringent 3-year ICC energy code cycles.
Engineers often fall into a common over-specification trap. Many assume stronger materials naturally perform better in all construction scenarios. This misconception creates serious problems in structural thermal isolation. A fundamental inverse relationship exists between thermal efficiency and material density. As you increase a material's compressive strength, you must increase its density. Denser materials contain fewer trapped air pockets, which inherently lowers their R-value. Over-specifying strength directly degrades insulation efficiency.
You must find the exact equilibrium for your specific connection point. We recommend an application-driven selection process to prevent over-engineering. Evaluate the specific mechanical forces at play before looking at thermal resistance parameters.
High Load / Low Insulation Priority: Some connections demand extreme mechanical stability. Cantilevered balconies and heavy canopy connections represent classic examples. These protruding structures generate immense compressive and tensile forces at the building envelope. You need materials capable of resisting these forces to prevent structural deflection. In these zones, you accept a slightly lower R-value to guarantee structural safety.
Low Load / High Insulation Priority: Other connections carry purely vertical, static loads with minimal shear forces. Consider internal steel columns extending to concrete slabs, commonly found in cold storage facilities. Because these joints face less volatile dynamic loading, you can safely sacrifice some compressive strength. Prioritizing maximum thermal isolation here prevents severe energy loss and ground-level condensation.
Finding this balance prevents unnecessary heat transfer. Always map the anticipated structural forces before specifying the density of your isolation pad.
No universal thermal barrier exists. Manufacturers engineer different polymers and composites to handle specific environmental and mechanical challenges. Let us break down the leading high-performance materials and their ideal structural applications.
High-density polyurethane foams offer an excellent closed-cell structure. This configuration provides high insulation values while remaining completely waterproof. PUR foams handle moisture exceptionally well, preventing degradation over decades of use.
These foams serve best in scenarios requiring moderate compressive strength. We frequently see them used under column bases and in cold storage applications. They excel at foundation-to-wall transitions where continuous vertical loads exist but extreme shear forces do not.
Thermoset resins utilize rigid cross-linked molecular structures. Unlike standard plastics, they do not melt or deform under high heat once cured. They offer excellent fire resistance alongside remarkably low long-term creep under load.
These high-strength composites shine in high-rise cladding attachments, like Z-girts, and heavy steel-to-steel connections for balconies. However, you must watch out for material limitations. Traditional fiberglass alternatives can degrade under extreme heat. They may also suffer structural compromise under continuous heavy cyclical loads compared to advanced reinforced thermoset resins.

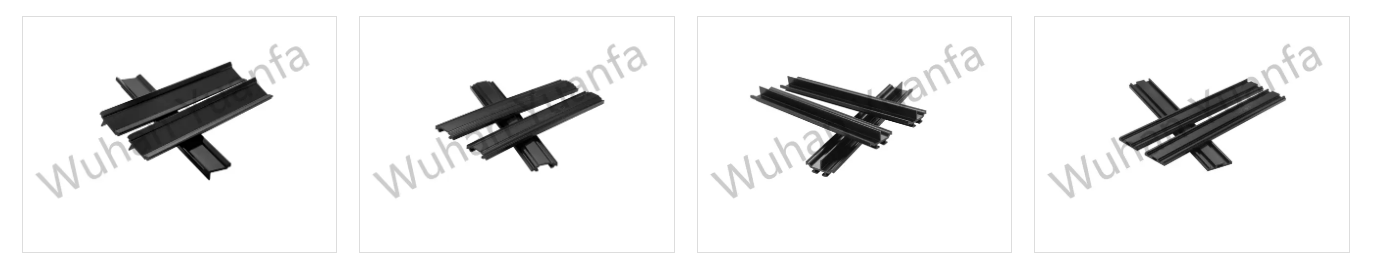

Polyamide materials deliver unique thermoplastic advantages. They are completely non-conductive, highly extrudable, and structurally robust under aggressive shear and torsion forces.
These traits make polyamide the undisputed champion for architectural glazing systems. You will find them primarily used in aluminum fenestration, complex curtain walls, and commercial storefronts where continuous thermal mapping is required.
Material Category | Core Characteristics | Primary Strengths | Best Use Cases |
|---|---|---|---|
High-Density PUR Foams | Closed-cell, waterproof, moderate density | High insulation, moisture resistance | Column bases, cold storage, foundation transitions |
Thermoset Resins | Rigid cross-linked, low creep, fire-resistant | High compressive load handling, heat resistance | Balcony steel connections, high-rise Z-girts |
Polyamide (Nylon) | Extrudable, non-conductive, shear-resistant | Matches aluminum CTE, design flexibility | Aluminum fenestration, curtain walls, storefronts |
Aluminum frame windows present a massive thermal challenge. Aluminum conducts heat exceptionally well. Without an integrated barrier, window frames act as a superhighway for winter heat loss and summer heat gain. This requires a highly specialized intervention.
The Coefficient of Thermal Expansion (CTE) explains why architects prefer specific polymers for fenestration. Building facades face brutal temperature fluctuations daily. The exterior metal might bake in the afternoon sun while the interior metal remains in air-conditioned comfort. Polyamide thermal breaks share a similar expansion and contraction rate to aluminum. Because both materials expand at nearly identical rates, the window frame maintains its structural integrity across extreme temperature swings. Mismatched materials would generate massive internal shearing forces, eventually causing the frame to warp or the seal to fail.

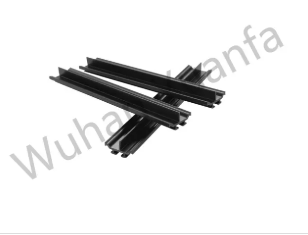

Continuous extrusion gives manufacturers incredible versatility. A Thermal break polyamide strip allows designers to specify varying insertion depths. This adaptability accommodates different sizes of double or triple insulated glass units (IGUs). You can tailor the width of the thermal zone to meet specific climate zone energy requirements.
Window manufacturers typically use two primary methods to isolate aluminum frames. Understanding their differences helps architects optimize building performance.
Strut Technology utilizes discrete connection elements, almost exclusively made of polyamide. These struts mechanically lock the interior and exterior aluminum profiles together. They offer high design flexibility, allowing manufacturers to easily create dual-color window frames. Furthermore, they provide superior structural bearing capacity to withstand high-rise wind loads.
Pour and Debridge (P&D) technology takes a different approach. Manufacturers inject liquid polyurethane into a dedicated aluminum channel. Once the polyurethane hardens, machinery mills away the bottom of the aluminum channel, leaving only the polymer to connect the two halves. P&D is highly cost-effective and creates an excellent thermal barrier. However, it proves much less flexible when architects demand complex custom designs or diverse two-tone finishes.
Selecting the right material represents only half the battle. Poor structural integration can instantly ruin the performance of premium insulation materials. Engineers must navigate several critical installation traps to maintain a continuous thermal envelope.
The most common error is the "too-thin" pad trap. Many detailers mistakenly specify incredibly thin isolation pads, thinking any separation halts heat flow. Structural engineering data proves otherwise. Thermal pads thinner than 1 inch can actually result in greater heat loss than continuous steel. When you insert a thin pad, structural requirements often dictate using thicker bolts with a larger cross-sectional area to handle the shear forces. These larger bolts act as high-capacity thermal bridges, funneling more heat than the thin pad stops. Always recommend matching the thermal pad thickness to the continuous wall insulation thickness.
Managing material creep ensures long-term structural safety. All polymers deform slightly under sustained loads over time. We advise capping the continuous compressive stress within the thermal pad at 35% or lower of the material's ultimate compressive strength. Staying below this threshold prevents long-term deformation and keeps the building facade perfectly aligned.
Fasteners routinely compromise structural connections. You can specify a brilliant isolation pad, but if conductive bolts connect the interior steel directly to the exterior steel, heat will bypass your barrier.
Identify Thermal Bridges: Treat every bolt, screw, and structural anchor as a potential thermal bypass path.
Specify the Right Metal: Stainless steel bolts have roughly three times lower thermal conductivity than standard carbon steel. Use them wherever structural codes permit.
Isolate the Shank: Never let the bolt touch the steel flange directly. Use crush-resistant thermal bushings to isolate the bolt shank from the surrounding metal hole.
Cap the Connection: Install thermal washers beneath the bolt head and nut. This completely severs the thermal pathway through the fastener assembly.
Modern building regulations force architectural teams to continually optimize energy performance. The International Code Council (ICC) updates building and energy codes every three years. These regular updates create increasingly stringent baselines, forcing continuous reductions in operational carbon. Ignoring thermal bridging in structural steel or aluminum facades virtually guarantees code failure in modern jurisdictions.
Properly specified thermal barriers do more than meet minimum codes; they unlock valuable sustainability certifications. Specifying the right materials directly contributes to critical LEED opportunities.
Under the Energy & Atmosphere (EA) category, achieving minimum energy performance is a prerequisite. Thermal breaks help optimize energy performance credits by maintaining continuous insulation. This unbroken barrier eliminates interior condensation risks, heavily mitigating mold growth and improving indoor air quality.
The Materials & Resources (MR) category offers additional scoring avenues. Forward-thinking manufacturers now produce isolation solutions that align with rigorous environmental goals. When sourcing materials, look for products that utilize pre-consumer recycled content. Furthermore, specify products that are entirely Red List Free. For foam-based isolators, always ensure they utilize modern blowing agents featuring zero Ozone Depletion Potential (ODP) and a Global Warming Potential (GWP) of 5 or less. Integrating these specific attributes elevates the environmental profile of the entire building project.
Untreated thermal bridges severely compromise building performance, but you can neutralize them by applying the right polymer technology to the right structural joint. Remember that no universal material exists. You must specify polyamide for fenestration, thermoset composites for heavy steel connections, and PUR foam for foundations and internal columns.
Over-specifying compressive strength inevitably sacrifices thermal resistance. To avoid this, evaluate your project's precise load requirements and assess regional climate extremes before selecting a product. Consult directly with a thermal bridging specialist to calculate exact structural limits. Taking these precise engineering steps ensures your building remains compliant, structurally sound, and radically energy efficient.
A: No. Higher compressive strength requires denser material, which lowers the R-value. Engineers must find the exact balance required for the specific joint. Prioritizing strength where it is not structurally required will needlessly degrade your building's insulation efficiency.
A: A thermal break is a general term for a non-conductive barrier, often poured polyurethane or a continuous strip. A thermal strut specifically refers to structural, discrete connection pieces—often a Thermal break polyamide strip—used to join interior and exterior aluminum profiles while handling high wind loads.
A: No. Standard rubbers and plastics undergo severe creep or deformation under building loads. They also often lack the verified low thermal conductivity required to meet energy codes or prevent condensation. You must always use engineered, structurally verified materials designed for construction loads.
