Author: Site Editor Publish Time: 2025-08-06 Origin: Site
Modern buildings are designed not only for aesthetics and functionality but also with energy efficiency in mind. Among the many technologies used to improve energy performance, thermal break strips play a significant role in aluminum profile systems such as windows, doors, and curtain walls. These strips help reduce heat transfer between the inside and outside of a building, leading to lower energy costs and increased indoor comfort.
However, to achieve their full benefit, thermal break strips must be properly installed. Incorrect installation can lead to thermal bridging, water leakage, or structural weakness, which compromise both energy efficiency and safety. This article provides a detailed, easy-to-understand guide to the installation of thermal break strips in aluminum profiles, covering best practices, common challenges, and tips to ensure lasting performance.
Before diving into installation tips, it's important to understand what thermal break strips are and why they matter. A thermal break strip is typically made of glass fiber reinforced polyamide, a material known for its low thermal conductivity and high mechanical strength. These strips are inserted between the inner and outer aluminum profiles to interrupt heat flow.
Without a thermal break, aluminum window and door frames act as conductors, allowing heat and cold to pass through quickly. This results in increased heating and cooling bills, condensation buildup, and an uncomfortable indoor climate. Thermal break strips break this path and significantly enhance the insulation of the structure.

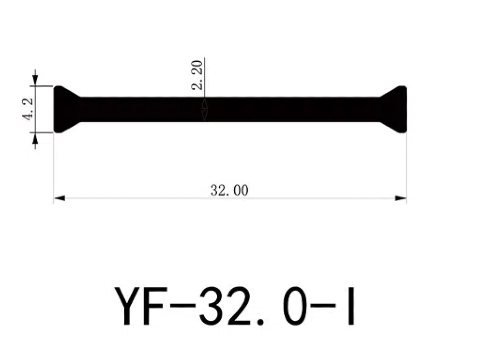

The first step in proper installation is choosing the correct type of strip. Not all thermal break strips are the same. They vary in width, thickness, design (T-shape, I-shape, etc.), and material quality. Always match the thermal break strip to the aluminum profile design and performance requirements.
You should consider:
Profile compatibility: Ensure the strip matches the aluminum slot size.
Mechanical properties: Choose a strip with adequate tensile strength and resistance to deformation.
Thermal performance: Evaluate the thermal conductivity rating to meet insulation goals.
Manufacturer guidance: Follow recommendations provided by both the strip and profile manufacturers.
Before inserting thermal break strips, make sure the aluminum profiles are clean, dry, and free from any oil, dust, or debris. Any residue can interfere with bonding, compromise mechanical fit, or promote corrosion over time.
Use the following methods for preparation:
Degreasing agents to remove oils and machining lubricants.
Compressed air to blow out particles from grooves and cavities.
Lint-free cloths for drying and final cleaning.
Proper preparation ensures a solid and secure installation that maintains its function over time.
There are two main methods for installing thermal break strips into aluminum profiles: knurling and rolling insertion, and pour-and-debridge. This article focuses on the more common mechanical method: knurling and rolling.
Knurling involves mechanically creating a rough surface inside the profile slot where the thermal strip will sit. This process improves mechanical interlocking and enhances the grip between the aluminum and polyamide strip.
Tips for effective knurling:
Use a precision knurling tool that matches the profile size.
Maintain a consistent speed and pressure to avoid damaging the profile.
Ensure that the knurled surface is clean and free of metal shavings before moving on.
Knurling creates micro-teeth or rough textures that hold the strip firmly in place and prevent slippage or separation during and after assembly.
Once the knurling is complete, the thermal break strip is inserted into the aluminum profile using a rolling machine. This equipment uses pressure rollers to press-fit the polyamide strip into the knurled groove.
Best practices for rolling:
Ensure the strip is aligned with the groove before starting.
Maintain a uniform rolling speed to prevent air pockets or uneven fitting.
Check for any distortion in the strip, such as stretching or twisting.
Use calibrated roller settings to avoid over-compression or under-insertion.
After rolling, the bond should be tight with no visible gaps between the strip and profile.
Installing thermal break strips isn't just about fitting them into place. You must ensure the integrity of the installation through systematic quality control checks.
Inspect the inserted strip for alignment, fit, and surface damage. There should be no warping, bending, or offset along the profile.
This test evaluates the holding force between the strip and aluminum profile. A standard pull test applies force to the strip to ensure it doesn’t dislodge under stress. This is essential for long-term durability and performance.
Infrared thermal cameras can be used to detect potential thermal bridging areas or improperly seated strips. While not always necessary in routine production, it’s useful in high-performance installations.
Even experienced installers can run into problems. Below are some typical issues and their solutions:
Cause: Misalignment during insertion or improper roller pressure.
Solution: Re-align the strip and adjust roller tension. Re-insert if necessary.
Cause: Smooth groove surface due to poor knurling or contamination.
Solution: Improve knurling depth and thoroughly clean profile slots.
Cause: Inconsistent rolling speed or mechanical defect in the strip.
Solution: Replace the defective strip and ensure rolling machine calibration.
Cause: Excessive pressure or using a strip that’s too rigid or old.
Solution: Adjust roller settings and use strips within their shelf life.
Even before installation, how you store and handle thermal break strips can affect performance.
Keep them in a dry, cool area, away from sunlight or moisture.
Avoid stacking heavy objects on top of strips to prevent deformation.
Rotate stock to use older strips first and reduce storage time.
Always follow the manufacturer’s guidelines regarding storage temperature, humidity, and maximum shelf life.
For advanced applications, especially in large buildings or curtain wall systems, consider the following:
Some polyamide strips come with co-extruded insulation foams or gaskets to further improve air sealing and reduce thermal conductivity.
In some cases, an adhesive layer or mechanical fastening may be added for extra security in high-stress environments.
Use multiple thermal break strips within a single profile to improve insulation for colder climates or energy-efficient building certifications.
When installing thermal break strips, always wear protective gloves and safety glasses. The machinery used for knurling and rolling can be dangerous if mishandled.
Additionally, leftover materials such as aluminum shavings or defective strips should be disposed of responsibly or recycled where possible. Many polyamide strips are recyclable and can be processed to reduce waste.
Once installed, thermal break strips generally require minimal maintenance, but periodic inspections can help ensure ongoing performance:
Check for signs of separation or warping during seasonal temperature changes.
Inspect surrounding seals and insulation to ensure an airtight system.
Clean aluminum frames regularly to prevent corrosion or material degradation.
These inspections are particularly important in regions with large temperature fluctuations or buildings exposed to harsh weather conditions.
Thermal break strips are a critical element in enhancing the energy performance of aluminum windows, doors, and façade systems. While the concept may seem simple, the installation process requires precision, care, and adherence to best practices to achieve maximum benefits. From selecting the right strip and preparing the aluminum profiles to proper knurling, rolling, and quality control, each step plays a vital role in the final outcome.
When done correctly, installing thermal break strips results in better insulation, lower energy bills, and improved indoor comfort. Whether you are working on residential housing, commercial buildings, or high-rise towers, the importance of meticulous installation cannot be overstated.
For those seeking high-quality thermal break strip materials and technical support, Wuhan Yuanfa New Material Co., Ltd. stands out as a trusted manufacturer offering a wide range of polyamide insulation strips designed for long-term durability and efficiency. Their products are engineered to meet international standards and are widely used in architectural aluminum systems across the globe.
