Author: Site Editor Publish Time: 2025-12-23 Origin: Site
Thermal insulation plays a pivotal role in enhancing the energy efficiency of modern buildings, and one of the most effective solutions for this purpose is the use of Thermal Insulation Polyamide Profiles for facades. These profiles are specially engineered to enhance the insulation properties of facade systems by minimizing heat transfer between the exterior and interior of a building. This, in turn, helps maintain a stable indoor temperature, reduces energy consumption, and improves overall comfort. In this blog, we will guide you through the step-by-step process of installing Thermal Insulation Polyamide Profiles, ensuring that you achieve a smooth, effective installation that maximizes energy efficiency and long-term durability for your building.

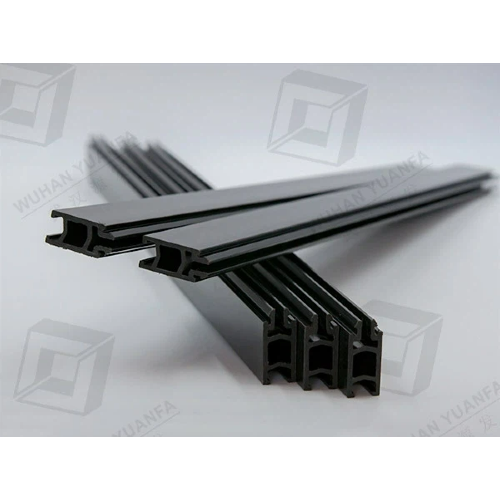

Thermal Insulation Polyamide Profiles are high-performance materials used in facade systems to prevent heat loss and improve building insulation. Made from PA66GF25, which is a glass-fiber reinforced polyamide, these profiles are specifically engineered for use in aluminum window and facade systems. They help in breaking the thermal bridge that often occurs in metal structures, thereby improving the energy efficiency of the building.
These profiles are designed to fit into aluminum frames and are particularly used in curtain wall and external wall applications. Their primary function is to provide thermal insulation by acting as a barrier to heat transfer.
Facade systems are critical for regulating a building's thermal performance. Thermal Insulation Polyamide Profiles enhance the thermal efficiency of facades by minimizing energy loss due to heat transfer through aluminum frames, which are typically good conductors of heat. By preventing this thermal bridging, these profiles contribute to a building's overall energy savings and sustainability.
Before starting the installation of Thermal Insulation Polyamide Profiles, it is essential to gather all the required materials. Proper preparation is key to a successful installation.
Tool/Equipment | Purpose |
Measuring Tools (Ruler, Tape Measure) | To measure the exact dimensions of the facade and profile lengths. |
Cutting Tools (Saw, Cutter) | To cut the thermal insulation profiles to the required length. |
Fixing Tools (Drills, Screws, Anchors) | To securely fix the profiles into place on the facade. |
Adhesives and Sealants | To seal the profiles and ensure no gaps for heat transfer. |
Safety Equipment (Gloves, Goggles) | For safety during installation, especially when cutting and fixing profiles. |
The choice of Thermal Insulation Polyamide Profiles depends on the width and length required for your facade system. Profiles like 22.52 mm are common for large-scale curtain walls and aluminum window systems. These profiles should also meet ISO 9001 and ISO 14001 quality standards to ensure durability and performance. Make sure to check the technical specifications to match the profile with the facade system's requirements.
Accurate measurements are crucial for the correct installation of Thermal Insulation Polyamide Profiles. The first step is to measure the total length of the facade where the profiles will be installed.
Measure the Length of the Facade: Measure the area of the facade where you plan to install the profiles.
Mark the Installation Points: Use a tape measure and level to mark the points where each profile will be placed. This ensures accurate alignment and placement.
Clean the Facade: Ensure that the surface is clean and dry. Any dirt or debris can affect the adhesion of the profiles.
Before installing, verify that the Thermal Insulation Polyamide Profiles are compatible with your facade materials. Check if the profile fits well with the aluminum frames, ensuring a tight and secure fit. Pay attention to the thermal expansion properties of both the profile and the frame to avoid any gaps that might reduce the insulation's effectiveness.
Once you’ve measured the facade and marked the installation points, the next step is to cut the Thermal Insulation Polyamide Profiles to the required length. Cutting the profiles ensures that they fit perfectly into the facade system.
Use Proper Cutting Tools: A fine-toothed saw or cutter is recommended for cutting Thermal Insulation Polyamide Profiles to avoid damaging the material.
Ensure Accurate Cuts: Double-check the measurements before cutting to avoid unnecessary wastage and ensure a tight fit.
Smooth the Edges: After cutting, smooth any rough edges to ensure a clean and professional installation.
With the profiles cut to size, the next step is to install them onto the facade system. There are two primary methods for securing the profiles: using adhesives or mechanical fasteners.
Adhesive Installation: For a clean and secure installation, apply a strong adhesive to the back of each profile and press it firmly into place on the facade.
Mechanical Fastening: If additional support is required, use screws or anchors to secure the profiles to the facade. Drill small holes into the facade and insert anchors to hold the profiles in place.
Make sure the profiles are aligned properly and securely fixed to prevent any shifting.
After securing the profiles, it is essential to apply sealants to ensure there are no gaps where heat can escape. The sealant also prevents moisture from entering, which could damage the profiles or cause structural issues over time.
Choose the Right Sealant: Use a high-quality, weather-resistant sealant that is compatible with the polyamide profiles.
Apply Sealant Around the Edges: Apply a thin layer of sealant around the edges of each profile to ensure a tight, secure seal.
Smooth the Sealant: Use a tool or your finger to smooth the sealant and ensure it adheres well to the surface.
Once the installation is complete, inspect the facade system to ensure that the Thermal Insulation Polyamide Profiles are properly aligned and secure.
Alignment: Check that the profiles are straight and evenly spaced along the facade.
Sealing: Ensure that the sealant has been applied properly and that there are no gaps or exposed areas.
Securing: Make sure the profiles are firmly attached, either through adhesives or mechanical fasteners.
To ensure the long-term effectiveness of the Thermal Insulation Polyamide Profiles, periodic maintenance is necessary. Clean the profiles regularly and check for any signs of wear or damage. Also, inspect the sealant regularly to ensure it hasn’t degraded over time.
Proper installation of Thermal Insulation Polyamide Profiles is essential for ensuring the long-term energy efficiency and performance of facade systems. These profiles significantly reduce heat loss and prevent thermal bridging, which can help lower energy costs and improve a building’s overall sustainability. By following the recommended installation steps, you can maximize the insulation benefits of your facade system, ensuring it functions effectively for years to come.
At Wuhan Yuanfa New Material Co., Ltd., we specialize in providing high-quality Thermal Insulation Polyamide Profiles designed for superior thermal performance. Our profiles are made from advanced PA66GF25 material, offering excellent durability and energy-saving properties. By choosing our products, you are investing in a solution that not only enhances your building’s energy efficiency but also contributes to a more sustainable environment.
If you're looking to optimize your facade system with reliable thermal insulation, we are here to help. Contact us today to learn more about our products and how they can improve the thermal efficiency of your building. Let us guide you towards more energy-efficient and environmentally friendly construction solutions.
Thermal Insulation Polyamide Profiles are high-performance materials used in facade systems to prevent heat transfer. They are made from PA66GF25, which is a glass-fiber reinforced polyamide, and are typically used in aluminum window and curtain wall systems.
Proper installation ensures that the insulation is maximized, preventing energy loss and ensuring the building remains energy-efficient. Incorrect installation can lead to gaps that reduce the effectiveness of the insulation.
Yes, Thermal Insulation Polyamide Profiles are versatile and can be used in most facade systems, including curtain walls and large glass facades. However, it’s important to ensure compatibility with the materials used in the facade.
These profiles are low maintenance. However, it’s important to periodically check for any damage or misalignment. Sealant integrity should also be inspected to prevent air and water leaks.
With proper installation and care, PA66GF25 profiles can last for decades. Their resistance to weathering, UV radiation, and mechanical stress makes them a durable choice for long-term facade insulation.
Yes, these profiles can be easily cut to the required lengths during installation to fit the specific dimensions of your facade system.
