Author: Site Editor Publish Time: 2025-12-18 Origin: Site
In today’s world, energy efficiency has become a top priority for homeowners, architects, and construction professionals alike. As energy prices continue to rise, the demand for materials that improve the energy performance of buildings has increased significantly. One of the most effective ways to ensure a building’s thermal efficiency is by choosing the right thermal insulation material. The right material not only helps in maintaining an ideal indoor temperature but also contributes to reducing energy consumption and lowering overall utility costs.
When it comes to aluminum doors and windows, 18.6mm Thermal Insulating Strips have proven to be one of the most reliable and effective insulation solutions. These strips help prevent heat transfer through aluminum frames, offering excellent energy savings. In this article, we will explore how to choose the best thermal insulation material, with a special focus on 18.6mm Thermal Insulating Strips for aluminum doors and windows.
Thermal insulation is a material that reduces the transfer of heat between different spaces or environments. Essentially, it works by slowing down the rate at which heat moves from one area to another. In the context of buildings, thermal insulation helps prevent heat loss in the winter and heat gain in the summer, thereby maintaining a more comfortable indoor environment. Proper insulation also contributes to the overall energy efficiency of the building, which reduces reliance on heating and cooling systems.
When properly installed, thermal insulation can dramatically improve a building’s performance by lowering energy consumption, stabilizing internal temperatures, and reducing the environmental impact of heating and cooling operations.
Various materials are available for thermal insulation, each with its unique properties and suitable applications. Here’s a brief overview of the most commonly used materials:
Material | Application | Advantages | Disadvantages |
Fiberglass | Residential & commercial use | Cost-effective, effective in preventing heat flow | Can cause irritation, requires protective gear |
Polyurethane Foam | Walls, roofs, floors | Excellent thermal resistance, lightweight | Higher cost, not environmentally friendly |
Polyamide (PA66) | Aluminum doors and windows | High performance, UV resistant, durable | More expensive than traditional materials |
Each of these materials has a specific application that works best for different environments. However, 18.6mm Thermal Insulating Strips stand out in applications involving aluminum doors and windows due to their precise fit and high thermal resistance.
18.6mm Thermal Insulating Strips are specifically designed to prevent heat transfer in aluminum door and window systems, making them an ideal choice for improving the energy efficiency of buildings. Here’s why these strips are a top choice:
High Performance: Made from PA66 GF25 (Polyamide 66 with 25% glass fiber), these strips offer excellent thermal resistance. The combination of polyamide and glass fiber enhances the material’s strength and insulation properties, making it an excellent barrier against heat transfer through aluminum frames.
Energy Efficiency: The primary role of thermal insulation is to reduce the amount of heat flowing through the frame of aluminum doors and windows. 18.6mm Thermal Insulating Strips effectively minimize heat loss during the colder months and prevent excessive heat gain in warmer months. This results in lower energy bills by reducing the need for heating and cooling.
Durability: These strips are crafted using a high-performance material that resists UV rays, extreme weather conditions, and mechanical wear. This means that the thermal break they provide will last for years, ensuring long-term energy efficiency without the need for frequent replacement.
Perfect Fit for Aluminum Frames: The 18.6mm width is designed to match the most common aluminum frame profiles used in doors and windows. This precision ensures a perfect fit, creating an airtight seal that maximizes the insulation benefits.
Aluminum frames are typically poor insulators due to the material’s high conductivity. Without proper thermal insulation, they allow heat to pass through, creating what’s known as a thermal bridge. This leads to higher energy consumption and discomfort inside the building. 18.6mm Thermal Insulating Strips effectively break this thermal bridge by acting as a barrier between the inner and outer portions of the aluminum frame, preventing heat transfer.
The PA66 GF25 material ensures that the insulation is both strong and effective, making it ideal for aluminum windows and doors where both strength and thermal performance are required.

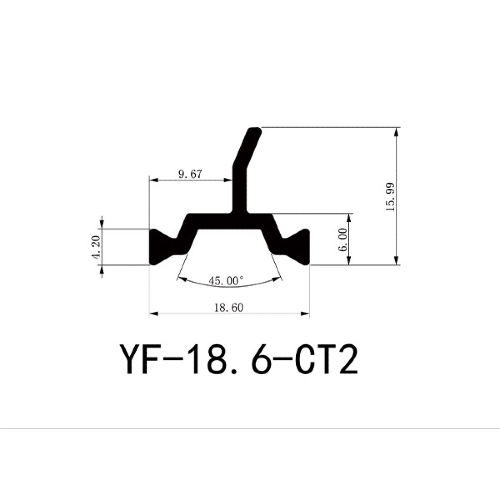

The 18.6mm width of these thermal insulating strips is designed to fit the most common grooves in aluminum window and door profiles. It’s important to ensure that the thermal strips are sized correctly for the specific aluminum frame you are working with. A proper fit ensures that there are no gaps through which heat can escape or enter, optimizing the performance of the insulation material.
To choose the right size, measure the width of the groove in your aluminum frame. Ensure that the 18.6mm Thermal Insulating Strips match this width for the best results. The strips should fit snugly into the profile to prevent air leaks and maximize insulation.
The PA66 GF25 material is chosen for its excellent mechanical strength and heat resistance. This material is designed to withstand extreme temperatures and environmental conditions, making it suitable for use in both hot and cold climates. Additionally, the glass fiber reinforcement gives the material added strength, preventing it from sagging or breaking over time.
Installing 18.6mm Thermal Insulating Strips is a straightforward process, though it requires precision to ensure that the strips are properly integrated into the aluminum frames. Here’s a step-by-step guide:
Measure the Frame: Carefully measure the width and length of the aluminum frame to ensure that the thermal strips will fit properly.
Cut the Strip: Using a sharp utility knife or saw, cut the strips to the required length. Be sure to avoid jagged edges, as a clean cut ensures a better seal.
Insert the Strip: Place the thermal strip into the groove of the aluminum frame. Gently press it into place to ensure a snug fit.
Seal the Edges: Once the strip is in place, apply a suitable sealant around the edges to ensure that there are no gaps.
While DIY installation is possible, especially for smaller projects, it’s recommended to hire a professional installer for large-scale applications. A professional installer will ensure that the thermal strips are properly aligned and installed for optimal performance, reducing the risk of air leaks and enhancing energy efficiency.
When comparing 18.6mm Thermal Insulating Strips with other insulation options such as foam or rubber, the initial cost may be higher. However, the long-term benefits outweigh the initial investment. Due to their durability and superior performance, these strips provide more significant energy savings over time. Here’s a cost comparison of common insulation materials:
Insulation Material | Cost per Meter | Thermal Conductivity | Lifespan | Maintenance |
18.6mm Thermal Strips | $2.50 | 0.23 W/m·K | 15-20 years | Low |
Polyurethane Foam | $1.80 | 0.21 W/m·K | 10-15 years | Moderate |
Rubber Strips | $1.20 | 0.30 W/m·K | 5-10 years | High |
The PA66 GF25 material used in the 18.6mm Thermal Insulating Strips ensures that they are highly durable and resistant to environmental stress. Unlike foam or rubber materials, which may degrade over time, these strips maintain their integrity for years, offering long-lasting insulation performance. This reduces the need for frequent replacements, making them a more cost-effective choice in the long run.
By effectively blocking the transfer of heat, 18.6mm Thermal Insulating Strips help maintain stable indoor temperatures. This makes the building more energy-efficient and comfortable. In colder climates, these strips prevent heat from escaping, while in warmer climates, they reduce the amount of heat entering the building, keeping the interior cooler.
Thermal insulation contributes significantly to the overall comfort of a building. By maintaining a more consistent indoor temperature, 18.6mm Thermal Insulating Strips ensure that spaces remain comfortable year-round, reducing the need for HVAC systems to work harder, which can also prolong the life of your heating and cooling systems.
Another significant benefit of using 18.6mm Thermal Insulating Strips is their ability to reduce sound transmission. The material’s density and thickness help absorb and dampen sound waves, making them a great option for noisy environments.
Choosing the right thermal insulation material is crucial for enhancing a building’s energy efficiency. Our 18.6mm Thermal Insulating Strips for aluminum doors and windows offer outstanding insulation performance, significantly reducing energy consumption, improving comfort, and contributing to environmental sustainability. With their superior durability, high thermal resistance, and precise fit for aluminum frames, these strips are an ideal choice for any energy-efficient building project.
By selecting the right insulation material, you ensure long-term energy savings and a more comfortable living or working environment. Our 18.6mm Thermal Insulating Strips provide a high-performance solution that delivers optimal insulation results, year after year.
At Wuhan Yuanfa New Material Co., Ltd., we are committed to providing high-quality insulation materials that meet the needs of modern construction. If you’re looking for an efficient, cost-effective solution to improve your building’s energy performance, we invite you to get in touch with us for more information or to discuss your specific requirements. Let us help you make your project more energy-efficient and sustainable.
The 18.6mm width of the thermal strips is specifically designed to fit the grooves of aluminum frames, providing a perfect seal that blocks heat transfer and improves energy efficiency. The PA66 GF25 material ensures long-term performance and durability.
While these strips are optimized for aluminum frames, they can be adapted for use in other metal or composite frames with some modification.
Measure the width of the groove in your aluminum frame. If it matches the 18.6mm width of the strips, it’s the correct size.
These strips have a lifespan of 15-20 years due to their resistance to environmental factors and UV degradation.
