Author: Site Editor Publish Time: 2026-07-11 Origin: Site
Aluminum frames can look identical while performing very differently. Some carry outdoor temperatures straight toward the room. Others block this path inside the frame. Thermal break aluminum windows use insulation between aluminum sections. You will learn how the thermal break strip works. We also explain how to verify the frame design.
Some aluminum windows have a thermal break, but many do not. The answer depends on the frame design rather than the aluminum material itself.
A traditional aluminum window may use one continuous profile across the frame. The same metal connects the outdoor side to the indoor side. This creates a direct path for heat to move through the frame.
Thermal break aluminum windows use two separate aluminum sections. One section faces outside, while the other faces inside. A thermal break strip sits between them and interrupts the conductive path.
The words “aluminum window” do not confirm either structure. Product names such as standard, premium, heavy-duty, or energy-saving may also lack enough detail.
A thermal break is a low-conductivity section placed inside a window frame. It separates aluminum surfaces exposed to different temperatures.
Aluminum offers strength, corrosion resistance, and design flexibility. However, it transfers heat much faster than common insulating materials. A continuous frame can therefore carry outdoor heat or cold toward the indoor surface.
The thermal break changes this path. Heat must travel through the insulating material instead of moving directly through aluminum. This reduces thermal bridging through the window frame.
The break must remain continuous around the relevant frame sections. Small isolated inserts do not provide the same result. The complete system must separate the indoor aluminum from the outdoor aluminum.

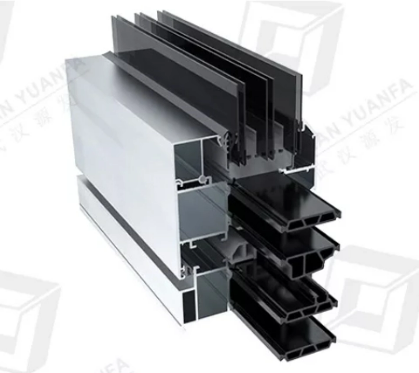

The thermal break strip connects two aluminum profiles while limiting heat transfer between them. It becomes part of the frame rather than a surface coating or removable liner.
During frame production, the strip fits into prepared grooves in the aluminum profiles. The profiles are mechanically locked around it. This process creates one assembled frame containing two separated metal sections.
The strip performs two jobs at once. First, it provides an insulating barrier. Second, it helps maintain the mechanical relationship between the aluminum parts.
This combination makes material selection important. The strip must resist deformation during processing, transportation, installation, and daily use. It must also remain stable during repeated temperature changes.
Glass-fiber-reinforced polyamide is commonly selected for this purpose. The reinforcement improves stiffness and dimensional stability. The polyamide base limits heat transfer more effectively than a direct aluminum connection.
A thermal break strip is therefore not a decorative plastic line. It is an engineered component affecting insulation, assembly accuracy, and long-term frame performance.
Note：Confirm the strip material and structural role instead of accepting a general “insulated window” description.
Adding a thermal break requires extra materials, profile design, production steps, and quality control. Basic windows may omit it to reduce manufacturing costs.
Some products are also designed for spaces where thermal performance is not the main concern. Examples may include open warehouses, unconditioned workshops, internal partitions, temporary buildings, or mild-climate structures.
Older aluminum windows often lack thermal breaks because many earlier systems focused on strength and weather protection. Energy performance received less attention in some past specifications.
A window may also use insulated glass while keeping a continuous aluminum frame. This combination can improve performance through the glass area, but the frame still forms a thermal bridge.
For this reason, buyers should assess the entire window. Glass, frame, spacers, seals, hardware, drainage, and installation all contribute to final performance.
The most reliable method is to view a frame cross-section. Thermally broken frames show a visible nonmetallic section between the interior and exterior aluminum profiles.
The barrier may appear as a dark strip, hollow profile, or shaped insulating section. Its appearance depends on the frame design. However, it should clearly interrupt the aluminum path.
A technical drawing can provide the same evidence. Look for separate aluminum sections joined by an insulating profile. Labels may include thermal break, thermal barrier, polyamide profile, insulating strip, or thermal break strip.
You can also request a physical corner sample. It allows you to inspect the assembly, groove fit, strip position, and frame separation before placing a large order.
Whole-window performance reports provide additional evidence. They are more useful than center-of-glass values because they include the effects of both the glazing and frame.
A touch test is not reliable. Sunlight, wind, indoor heating, outdoor temperature, and recent weather can change the frame surface. A visible line alone is also insufficient because gaskets and decorative covers may look similar.
The two window types can share similar finishes, opening styles, and glass options. Their main difference lies inside the frame.
Comparison Point | Standard Aluminum Window | Thermally Broken Aluminum Window |
Frame construction | Often uses continuous aluminum | Uses separated inner and outer profiles |
Insulating component | Usually no structural barrier | Includes a thermal break strip |
Heat-transfer path | Direct path through the metal | Interrupted by low-conductivity material |
Interior surface temperature | More affected by outdoor conditions | More stable under temperature differences |
Condensation risk | Can be higher in cold conditions | Often lower when properly designed |
Manufacturing process | Simpler profile assembly | Requires accurate strip insertion and locking |
Initial cost | Usually lower | Usually higher |
Suitable applications | Mild climates or unconditioned spaces | Conditioned buildings and demanding climates |
Verification method | Continuous metal appears in section | Nonmetallic separation appears in section |
This comparison describes common designs. It does not guarantee the performance of every product. Frame depth, strip geometry, glazing, seals, workmanship, and installation can change the final result.
No. Double glazing refers to the glass unit, not the internal construction of the aluminum frame.
A window can use two glass panes and still have a continuous aluminum frame. The glass may reduce heat transfer through the center area, while the frame continues to conduct heat around the edges.
The opposite situation is also possible. A frame may contain a thermal break but use glazing that does not meet the project target. Both parts must work together.
For a complete assessment, review the glazing specification and frame construction separately. Then examine whole-window performance rather than judging one component alone.
Note：Never use the number of glass panes as proof of a thermally broken frame.
The main benefit is reduced heat transfer through the aluminum frame. This can help the indoor surface remain closer to room temperature.
Warmer interior frame surfaces during winter may improve comfort near the window. They may also reduce the conditions that cause surface condensation.
During hot weather, the barrier can slow heat movement from the exterior aluminum toward the room. This supports the work of the glazing, shading system, and cooling equipment.
Thermal break aluminum windows can also support energy-performance targets. Their actual contribution depends on the complete window design and the building envelope.
The thermal break strip helps retain the strengths of aluminum. Manufacturers can still use durable, slim, and precisely shaped metal profiles while reducing the weakness caused by high conductivity.
These benefits are most noticeable where indoor and outdoor temperatures differ greatly. Cold regions, hot climates, humid interiors, and regularly conditioned buildings often gain more value.
It can reduce condensation risk, but it cannot prevent every moisture problem.
Condensation forms when moist air contacts a surface below its dew-point temperature. A continuous aluminum frame can become very cold during winter. Moist indoor air may then create water droplets on the frame.
A thermal break reduces direct heat flow and may keep the interior frame warmer. This lowers one important condensation trigger.
However, indoor humidity still matters. Poor ventilation, failed seals, air leakage, weak glazing, installation gaps, and extreme weather can also cause moisture.
If a thermally broken window develops condensation, inspect where the water appears. Moisture on the room-side surface may suggest high humidity or cold surfaces. Moisture between glass panes may indicate a failed insulated glass seal.
A true thermal break is normally built into the frame during manufacturing. It cannot usually be added through a simple surface treatment.
Paint, tape, foam, and plastic covers may change surface contact or reduce drafts. They do not separate a continuous aluminum profile into two structural sections.
Replacing the glass also does not create a thermal break in the frame. It may improve glazing performance, but the original aluminum bridge remains.
When an existing frame causes serious heat loss or condensation, full window replacement may provide the most complete solution. Before replacing it, inspect seals, perimeter insulation, drainage, and installation gaps. These defects can produce similar symptoms.
They are often worth considering for heated or cooled buildings. The decision should reflect climate, window area, indoor comfort goals, energy requirements, and expected service life.
A non-thermally broken window may have a lower purchase price. However, the initial price does not show the full cost of ownership. Comfort complaints, condensation damage, heating demand, cooling demand, and maintenance may add long-term costs.
Thermally broken systems can be especially valuable for large windows. Greater frame area creates more potential heat-transfer paths. Wide profiles and large glazed openings therefore require careful thermal design.
The upgrade may offer less value in an open warehouse or unconditioned shelter. It may offer much more value in apartments, offices, schools, hospitals, hotels, and other occupied spaces.
Buyers should compare equivalent systems. Review complete window performance, frame quality, glazing, hardware, installation, and supplier support. Comparing only the thermal break strip price can lead to a poor decision.
Start with the aluminum profile geometry. The strip must fit the grooves and support the intended assembly process. An incorrect shape can cause insertion problems, loose locking, profile movement, or poor alignment.
Material consistency is equally important. The strip needs stable dimensions and adequate mechanical strength. It should tolerate temperature changes without excessive shrinkage, cracking, or distortion.
The required width and profile shape depend on the window system. Wider sections may create a longer heat-transfer path, but width alone does not determine final performance. Frame geometry, hollow chambers, glazing, seals, and assembly quality also matter.
Production conditions should be reviewed before final selection. The strip may face mechanical threading, rolling, surface treatment temperatures, storage conditions, and automated assembly.
For customized profiles, provide accurate groove drawings, dimensional tolerances, application details, processing conditions, and expected loads. Early technical coordination can reduce tooling changes and production delays.
Tip：Test the strip inside the real aluminum groove before confirming mass production.
Not all aluminum windows contain a thermal barrier. Thermal break aluminum windows use separated metal sections and a stable insulating strip. This design reduces frame heat transfer and supports better indoor comfort. Wuhan Yuanfa provides reinforced polyamide thermal break strip solutions, precision extrusion, profile customization, and technical support. These services help manufacturers improve fit, insulation, durability, and production consistency.
A: Thermal break aluminum windows separate two aluminum sections using insulation.
A: No. Many standard frames use continuous aluminum.
A: Thermal break aluminum windows show an insulating strip in their cross-section.
A: Yes. Thermal break aluminum windows require extra materials and processing.
A: No. It improves glass, not the aluminum frame.
A: Cold surfaces, high humidity, or failed seals may cause condensation.
