Author: Site Editor Publish Time: 2026-07-15 Origin: Site
A window can have excellent glass yet lose heat through its frame. This happens when aluminum connects indoors directly to outdoors. Thermal break aluminum windows solve it by separating those metal sections. You will learn how the break works, what the thermal break strip does, and how to assess window quality.
● A thermal break is a low-conductivity section between the inner and outer parts of a metal window frame.
● In thermal break aluminum windows, it interrupts the continuous aluminum path carrying heat between indoor and outdoor surfaces.
● The thermal break strip provides insulation while helping connect two separate aluminum profiles.
● Glass-fiber-reinforced polyamide, often called PA66 GF25, provides strength, heat resistance, and dimensional stability.
● A thermal break can reduce frame heat loss, summer heat gain, cold interior surfaces, and condensation risk.
● It cannot replace suitable glazing, effective seals, precise fabrication, or correct installation.
● Buyers should review the frame cross-section, strip material, profile fit, assembly quality, and whole-window thermal data.
● A suitable system balances insulation, structural loads, climate conditions, processing needs, and project cost.
A thermal break is an insulating section inside a metal window frame. It separates room-side aluminum from exterior aluminum. This interruption slows the heat that would otherwise travel directly through the frame.
The term describes a function, not only one material. In modern aluminum systems, a solid thermal break strip often creates this separation.
The break sits within the frame cross-section. One aluminum profile faces outdoors, another faces indoors, and the insulating strip runs between them.
Paint, plastic covers, weather seals, and decorative trims are not true thermal breaks. A genuine break must separate the structural aluminum sections across the frame.
Aluminum is strong, durable, corrosion resistant, and suitable for slim profiles. However, it also transfers heat quickly.
Without separation, the frame can carry winter cold indoors and summer heat inward. It becomes a thermal bridge, even when the window uses insulated glass.
Thermal break aluminum windows use two separate aluminum extrusions. A shaped polyamide strip fits into matching grooves. Production equipment then rolls or crimps the aluminum around the strip.
This creates one composite frame. The aluminum carries structural loads, while the strip reduces heat conduction. Accurate grooves, strip dimensions, and rolling pressure help keep the connection stable.
“Thermal break” describes the interruption of heat flow. “Thermal barrier” has a similar meaning. “Thermal strut,” “insulating profile,” and “thermal break strip” usually describe the installed component.
Terms vary by market. The key question is whether the frame contains continuous separation between interior and exterior aluminum.
A thermal break improves the frame’s resistance to heat flow. It can keep the interior frame surface closer to room temperature and reduce condensation risk.
It cannot correct poor glass, failed seals, air leakage, high humidity, or gaps around the opening. The complete window must work as one system.
Heat moves from warmer areas toward colder areas. In a continuous aluminum frame, it travels easily through the metal. The thermal break adds material that conducts heat much more slowly.
Heat must cross the insulating strip before reaching the other aluminum section. It does not stop all transfer, but it reduces the thermal bridge.
An unbroken frame may become very cold in winter or hot in summer. Thermal separation reduces these surface temperature swings.
A more stable indoor frame improves comfort near desks, beds, and seating areas. It also reduces cold spots where moisture may collect.
Frame performance is only one part of window performance. Glass, spacers, gaskets, drainage, opening design, and installation also matter.
High-performance glazing cannot fully compensate for a conductive frame. Likewise, a good break cannot compensate for air leakage around the window.
Polyamide combines low heat transfer with useful mechanical properties. It can be extruded into precise profiles and remain stable between two aluminum sections.
The strip must also handle tension, compression, temperature changes, moisture, and long-term loading. Material consistency is essential.
PA66 GF25 means polyamide 66 reinforced with about 25% glass fiber. The reinforcement improves rigidity, tensile strength, compressive strength, and dimensional stability.
The company’s window and door category describes these strips as products designed for aluminum systems, emphasizing mechanical strength, weather resistance, corrosion resistance, and stable dimensions.

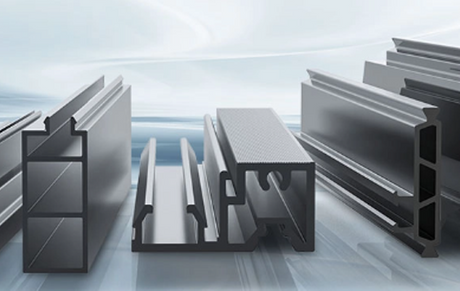

A thermal break strip normally has shaped edges or locking teeth. They fit into prepared grooves on each aluminum profile. Rolling equipment closes the aluminum around those edges.
The finished connection must resist movement during fabrication, transport, installation, and service. Precise extrusion supports consistent fitting and assembly.
Width, wall thickness, cavities, teeth, and surface design affect system performance. A wider strip may increase separation, but width alone does not prove quality.
The profile must match its aluminum groove and design loads. Window size, glass weight, wind pressure, climate, and coating processes also influence selection.
Tip: Request an approved cross-section and tolerance requirements before confirming a thermal break strip.
Thermal separation reduces heat passing through the aluminum frame. Less indoor heat escapes during winter, while less exterior heat enters during summer.
Actual savings depend on climate, window area, glazing, orientation, airtightness, and energy prices. One fixed saving cannot apply to every project.
Cold or hot frame surfaces can make perimeter areas uncomfortable. Thermal break aluminum windows reduce these extreme conditions and support more even room temperatures.
This matters in homes, offices, hotels, schools, and other occupied buildings. The system also keeps aluminum’s slim appearance and structural capacity.
Condensation forms when a surface reaches the dew point of nearby air. A warmer indoor frame is less likely to reach that point in cold weather.
A thermal break reduces risk but does not guarantee a dry window. High humidity, weak ventilation, cold glass edges, and installation defects still matter.
The system retains aluminum’s durability, narrow sightlines, finish options, and suitability for large frames. The strip addresses its main thermal weakness.
Official product information positions these strips for windows, doors, and facade systems requiring insulation, durability, and stable performance.
Feature | Standard Aluminum Window | Thermally Broken Aluminum Window |
Frame structure | Continuous aluminum path | Separated inner and outer profiles |
Insulating component | Usually absent | Thermal break strip |
Frame heat transfer | Higher | Lower |
Indoor surface temperature | More weather-sensitive | More stable |
Condensation risk | Often higher | Usually reduced |
Initial cost | Usually lower | Usually higher |
Common use | Mild climates or unconditioned spaces | Conditioned buildings and demanding climates |
Double or triple glazing may perform well at the glass center. Yet a continuous metal frame can remain a weak thermal path.
Whole-window values are more useful than glass-only values. They include the effects of the frame, glass, spacer, and other components.
Standard aluminum may suit internal partitions, garages, storage areas, or some buildings in mild climates.
The choice should reflect conditioning, weather, condensation risk, energy requirements, and service life. Purchase price should not be the only measure.
Note: Compare whole-window thermal values tested under the same method.
The clearest proof is a technical cross-section or physical cut sample. Look for a continuous non-metallic profile between the inner and outer aluminum sections.
Do not mistake a gasket or decorative cover for the thermal break strip. The strip should form part of the structural frame connection.
Ask for drawings, material details, thermal values, and relevant test information. Check whether reported values cover the glass, frame, or complete window.
Clear documentation also reduces mistakes during profile design, purchasing, fabrication, and quality inspection.
Confirm the strip material and whether it fully separates both aluminum profiles. Request the approved groove design, dimensional tolerances, and assembly guidance.
Also check suitability for the required window size, climate, coating process, and structural loads. General “energy-saving” claims are not enough.
A quality strip should maintain its shape during storage, assembly, temperature cycling, and long-term use. Poor dimensional control can cause loose fitting or difficult insertion.
PA66 GF25 is used because reinforcement improves strength and stability while maintaining insulating performance.
The strip and aluminum must form a secure composite profile. Groove geometry, knurling, insertion, rolling pressure, and inspection all affect the connection.
A good strip cannot correct an unsuitable groove or weak crimping process. Fabricators should control materials and assembled profile performance.
Glass selection, seals, drainage, corners, hardware, and wall connections remain important. Poor installation can create leakage and thermal bridges around an effective frame.
Project teams should assess the complete window rather than approving the strip alone.
Tip: Approve material samples, assembled profiles, and inspection criteria before volume production.
A thermal break separates indoor and outdoor aluminum, reducing direct heat flow. The thermal break strip adds insulation, strength, and stable frame performance. Wuhan Yuanfa supplies reinforced polyamide profiles for windows, doors, and facades. Its precise extrusion and customization services help manufacturers build reliable thermal break aluminum windows for varied system needs.
A: A low-conductivity thermal break strip separates the aluminum profiles.
A: Thermal break aluminum windows interrupt direct heat conduction through the frame.
A: Thermal break aluminum windows improve comfort and reduce condensation risk.
A: Thermal break aluminum windows usually cost more due to added materials and processing.
A: No. Indoor humidity, glass, seals, and installation still matter.
A: No. Glazing insulates the glass area; the break insulates the frame.
