Aluminium is strong, sleek, and long-lasting. But it has one big weakness: it moves heat fast. That is why thermal break aluminum windows matter. In this article, you will learn how a thermal break strip works, why it improves window frames, and how to judge a good system.
A thermal break is an insulating section inside an aluminium window frame. It sits between the inner aluminium profile and the outer aluminium profile. Its job is simple: it stops the frame from acting like one continuous metal bridge.
Aluminium is useful for window systems because it is light, strong, and easy to form into slim profiles. It also handles weather well. The problem is heat. Aluminium conducts heat much faster than many building materials. Without a break, outdoor cold or heat can move through the frame and affect the indoor side.
A thermal break strip solves this problem. It separates the two aluminium sections. It does not remove aluminium from the design. Instead, it changes how the frame handles heat. The strip creates a low-conductivity barrier between the inside and outside.
In real window production, the strip is not a simple plastic filler. It is a shaped insulating profile. It must fit the aluminium grooves correctly. It must also help hold the two aluminium sections together. That means it needs both insulation value and mechanical strength.
The word “break” is important. It means the conductive route is interrupted. The indoor aluminium and outdoor aluminium are no longer one direct heat path. This helps the indoor side stay closer to room temperature.
For thermal break aluminum windows, this small hidden part can strongly affect comfort. The glass may look more important, but the frame also matters. If the frame conducts heat, the whole window system loses efficiency.
Tip：Ask for a frame cross-section before purchase, because the real thermal break strip should be visible between two aluminium profiles.
A thermal break strip works by reducing conduction. Conduction is heat moving through a solid material. In a standard aluminium frame, heat can move from one side to the other through the metal. In winter, indoor heat escapes. In summer, outdoor heat enters.
The strip changes that path. Instead of aluminium touching aluminium across the full frame, the heat must pass through a lower-conductivity material. This slows the heat flow. It does not make the frame perfectly insulated, but it reduces thermal bridging.
Thermal bridging happens when a conductive material carries heat across an insulated area. In windows, the frame can become a bridge. This is why thermal break aluminum windows are more useful than standard aluminium windows in climates with heating or cooling demand.
The thermal break strip also helps keep the indoor frame surface warmer in winter. This can reduce the chance of condensation. When a cold surface meets humid indoor air, moisture can form. A warmer frame surface is less likely to reach that point.
In summer, the same idea works in reverse. The outdoor aluminium may heat up under sun exposure. The strip helps limit that heat from moving indoors through the frame.
A good strip also needs stable shape. Window frames face temperature changes, wind load, handling, and assembly pressure. If the strip deforms, shrinks too much, or fits poorly, the window may lose both thermal performance and structural reliability.
Note：A thermal break reduces condensation risk, but it cannot fix high indoor humidity or poor ventilation.
Aluminium windows need a thermal break because aluminium is a good conductor. This is helpful in some industries, but not ideal for building insulation. A continuous aluminium frame can move heat quickly between outside and inside.
In a cold climate, this can make the indoor frame feel cold. It can also create cold zones near the window. People may feel drafts even when the window is closed. Sometimes the issue is not air leakage. It is surface temperature.
In a hot climate, the frame can work the other way. Outdoor heat can pass through the metal and warm the room. If the building uses air conditioning, that extra heat load can raise energy use.
The thermal break strip helps the aluminium frame match the performance goal of the glass. Many buyers focus on double glazing or triple glazing. That is useful, but the frame must support the same goal. A high-performance glass unit inside a weak frame creates an unbalanced window.
Thermal break aluminum windows are designed as a system. The strip, aluminium profile, glass, gasket, spacer, hardware, and installation all affect the final result. A strong thermal break strip improves the frame part of that system.
This is why the strip should not be treated as a minor accessory. It is one of the core parts of a thermally broken aluminium window.
The first benefit is better insulation. The thermal break strip slows heat movement through the frame. This helps keep indoor heat inside during colder months. It can also reduce outdoor heat gain during warmer months.
The second benefit is comfort. A room can have a stable air temperature but still feel uncomfortable near a cold frame. When the indoor frame surface stays closer to room temperature, the area around the window feels more comfortable.
The third benefit is condensation control. Condensation often appears on cold surfaces. A thermally broken frame can stay warmer on the indoor side. This lowers the chance of moisture forming on the frame under normal indoor conditions.
The fourth benefit is better whole-window performance. Windows are tested as complete units, not just glass. A better frame helps the total window perform better. This matters for residential buildings, hotels, offices, schools, and other projects where energy use and comfort matter.
The fifth benefit is design flexibility. Aluminium can still offer slim lines and strong structure. The thermal break strip allows the frame to keep those advantages while reducing one key weakness.
Still, results vary. Thermal break width, profile design, material quality, frame depth, glazing type, and installation all matter. A thermal break label alone does not prove high performance.
Tip：Compare whole-window U-value data when available, not only the thermal break strip width.
A reliable thermal break strip must first have low thermal conductivity. If the material conducts too much heat, it cannot do its job well. The strip should create real resistance between the two aluminium sections.
It also needs mechanical strength. The strip is part of the frame assembly. It must handle loads, movement, and pressure from production and use. Weak or unstable materials may affect the window’s long-term shape and safety.
Dimensional stability is another key point. Window profiles are produced with tight tolerances. The strip must keep its size and shape during extrusion, storage, insertion, rolling, coating, and final installation. Poor fit can cause assembly issues.
Groove compatibility is just as important. The strip must lock into the aluminium profile securely. If the groove and strip do not match, the frame may not assemble well. That can hurt both strength and insulation.
Quality control should include consistent extrusion, clean surfaces, accurate dimensions, and stable material properties. For large orders, repeatability matters more than a single good sample.
Note：Do not judge a thermal break strip only by appearance; material data and profile tolerance matter more.
Standard aluminium windows and thermal break aluminum windows may look similar from a distance. The difference is inside the frame. A standard frame may have a direct aluminium path between outside and inside. A thermally broken frame separates those paths.
This difference changes how the window handles temperature. It also affects comfort, condensation, and energy performance.
Comparison Point | Standard Aluminium Window | Thermal Break Aluminum Window |
Frame structure | Continuous aluminium path | Aluminium sections separated by a strip |
Heat transfer | Higher through the frame | Lower through the frame |
Indoor frame temperature | More affected by outdoor weather | Closer to indoor temperature |
Condensation risk | Usually higher | Usually lower when designed well |
Energy performance | Limited by frame conduction | Improved frame insulation |
Typical use | Mild climates or basic projects | Energy-focused buildings |
Purchase focus | Lower initial cost | Better long-term comfort and efficiency |
Cost is often the main question. Thermally broken systems usually cost more than basic aluminium windows. The extra cost comes from the insulating strip, profile design, production steps, and quality control.
But the price should be compared against project needs. In a building where heating, cooling, comfort, or condensation control matters, the higher initial cost may be easier to justify. For low-demand spaces, a basic frame may still be acceptable.
The better question is not “Which is cheapest?” It is “Which frame suits the building’s climate, comfort target, and service life?”
Start by checking whether the frame truly has a continuous thermal break strip. A supplier should be able to show a cross-section or technical drawing. The indoor and outdoor aluminium parts should be separated by the insulating strip.
Next, check the strip material. Look for clear material information. Terms like “plastic insert” are too vague. A proper strip should be designed for aluminium window and door systems. It should offer insulation, strength, heat resistance, and dimensional stability.
Then review the profile design. The strip width should fit the required thermal level and frame size. Wider strips may help, but only when the frame system supports them. Hollow designs, locking teeth, and multi-cavity shapes can also affect performance.
Also check the complete window system. Thermal break aluminum windows depend on more than one component. Glazing, spacers, sealing, gaskets, frame corners, hardware, and installation all influence the final result. A good strip cannot fully correct poor assembly.
Ask for performance documents when the project requires them. These may include whole-window U-value data, material reports, or quality certificates.
For custom projects, discuss profile compatibility early. The thermal break strip must match the aluminium groove. If the design changes later, tooling and sampling may need adjustment.
Tip：Send aluminium profile drawings early, so the strip supplier can review groove fit and profile compatibility.

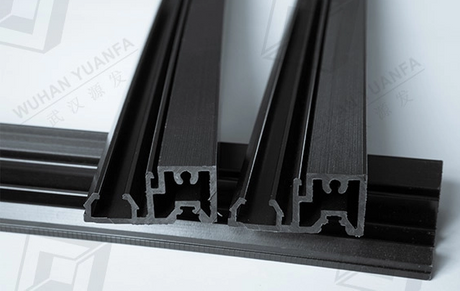

A thermal break is the hidden part that helps aluminium windows perform better. It separates the inner and outer frame, reduces heat transfer, and improves comfort. Wuhan Yuanfa provides PA66GF25 thermal break strip solutions for aluminium windows, doors, and facades, helping projects gain stable insulation, reliable strength, and practical custom support.
A: Thermal break aluminum windows use an insulating strip to separate indoor and outdoor aluminium profiles.
A: It interrupts the metal heat path and slows heat transfer through the frame.
A: Thermal break aluminum windows improve comfort, reduce condensation risk, and support energy efficiency.
A: Yes, usually. The higher cost comes from better materials and frame assembly.
A: Poor material, bad fit, or weak assembly can reduce performance.
