Author: Site Editor Publish Time: 2025-08-04 Origin: Site
In an era where energy efficiency and sustainability are not just desirable but essential, building materials and construction techniques that contribute to long-term savings have taken center stage. Among these innovations, thermal break strips have emerged as a key component in modern window and façade systems. But while they are praised in architectural and engineering circles, the question many homeowners, developers, and facility managers ask is: Do thermal break strips really reduce energy bills?
This article dives into that question by explaining how thermal break strips work, how they affect building performance, and what the actual data says about their role in lowering energy costs.

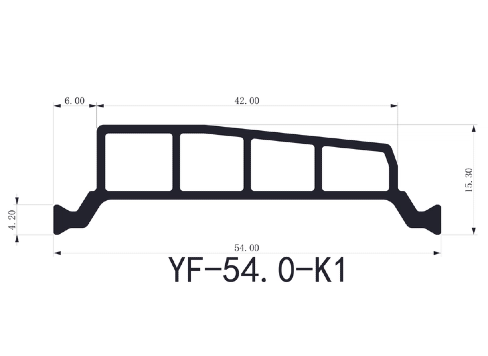

Before we examine the numbers, let’s clarify what thermal break strips are. Most commonly used in aluminum window and curtain wall systems, thermal break strips are narrow bands of low-conductivity material—often made of polyamide—inserted between the inner and outer parts of the aluminum frame. These strips serve as a barrier to reduce heat transfer between the inside and outside of a building.
Aluminum is a popular framing material due to its durability, strength, and lightweight nature. However, it's also a highly conductive metal, meaning it easily transfers heat and cold. Without a thermal break, aluminum frames can become a thermal bridge, quickly allowing heat to escape during winter and letting it in during summer.
Thermal break strips essentially interrupt this bridge. By using a poor conductor (polyamide), the system blocks much of the heat flow, making windows and façades more insulating and energy-efficient.
To appreciate the value of thermal break strips, you need to understand thermal bridging and its impact on energy consumption. A thermal bridge occurs when a material with high conductivity bypasses insulation and creates a path for heat to escape or enter. In building envelopes, this typically happens in frames, junctions, and edges of walls and windows.
When a window frame becomes a thermal bridge, it causes two main problems:
Heat loss in winter – Indoor heating escapes through the conductive frame, leading to increased energy use.
Heat gain in summer – Outdoor heat enters through the frame, causing air conditioners to work harder.
This inefficient exchange leads to higher energy bills because heating and cooling systems must operate more frequently and at higher intensities to maintain a stable indoor temperature.
Thermal break strips mitigate thermal bridging by reducing the thermal conductivity of the window or façade system. Let’s take a typical aluminum frame with and without a thermal break as an example:
A non-thermally broken aluminum frame can have a U-value (a measure of heat transfer) of around 6.0 W/m²K.
Adding a thermal break strip can reduce that U-value to 1.8–2.5 W/m²K, depending on the configuration.
Lower U-values indicate better insulation. This reduction dramatically limits the amount of heat that escapes or enters a building through the frames.
In practical terms, that translates to:
Less heating in cold months
Less air conditioning in warm months
Greater indoor temperature stability
Improved comfort and reduced energy consumption
Now that we’ve covered how thermal break strips work, it’s time to look at the data.
A 2022 study by a European building science institute conducted energy modeling on residential homes with standard aluminum-framed windows and those with thermally broken frames. The homes were identical in structure, insulation, and orientation.
Annual energy savings: Homes with thermally broken frames used 18–22% less energy for heating and cooling.
Monthly savings: On average, these homes saved about $35 to $45 per month on energy bills, depending on climate zone.
Payback period: The cost difference between standard and thermally broken frames was recovered in 3 to 5 years through energy savings alone.
In a North American commercial building simulation comparing curtain wall systems with and without thermal breaks:
The building with thermal break strips reduced HVAC load by 28% annually.
This equated to a $12,000–$18,000 reduction in annual utility costs for a medium-sized office tower.
Additionally, the internal environment was more stable, with fewer complaints about drafts and hot or cold zones.
These findings are supported by results published by energy efficiency programs like ENERGY STAR, LEED, and Passive House, which all emphasize the importance of thermal break technologies in achieving energy efficiency targets.
It’s worth noting that the effectiveness of thermal break strips in reducing energy bills can vary depending on climate. Here's how:
In regions with long, cold winters—such as northern Europe, Canada, and parts of the U.S.—thermal break strips play a vital role in minimizing heat loss. Since heating constitutes a significant part of the energy bill in these areas, thermally broken windows and frames can have a huge impact.
In a Canadian field study, retrofitting aluminum-framed windows with thermally broken units resulted in a 25% drop in heating energy usage, cutting winter utility bills significantly.
In hot climates like the southern U.S., the Middle East, and parts of Australia, thermal break strips help by reducing solar heat gain. While windows already use glazing to combat this, the aluminum frames can still transfer a lot of heat. Adding thermal breaks keeps indoor spaces cooler and reduces air-conditioning costs.
Field tests in Arizona demonstrated that using thermally broken aluminum frames reduced cooling demand by 15%, especially in buildings with large curtain walls exposed to direct sunlight.
Apart from reducing direct heating and cooling loads, thermal break strips also lead to indirect cost savings.
Because the building envelope is more efficient, the required size and capacity of HVAC systems may be reduced, which can lower upfront construction or renovation costs. Smaller systems are also more energy-efficient and cost less to maintain.
Thermal break strips help reduce condensation inside frames. This not only improves comfort but also protects adjacent walls, insulation, and finishes from moisture damage, mold, or structural decay—resulting in lower repair and maintenance costs over time.
Buildings with high energy efficiency ratings are increasingly sought after. Installing thermally broken systems can increase resale value, improve rentability, and reduce vacancy rates in commercial settings.
Although frames with thermal break strips may cost more upfront—generally 10–20% more than standard aluminum systems—they provide clear and measurable returns in the form of lower energy bills, improved durability, and increased occupant comfort.
Whether you are constructing a new building or retrofitting an old one, the addition of thermal break strips is a proven, long-term solution to reduce operational costs and environmental impact.
Moreover, with increasing regulations around energy efficiency, having thermal break technology is quickly becoming a requirement rather than a luxury. Many building codes already mandate minimum U-values or thermal performance standards that can only be met through the use of thermal break systems.
The data is clear: thermal break strips do reduce energy bills. They serve as a vital part of any energy-efficient window or curtain wall system by addressing one of the most problematic forms of energy loss—thermal bridging. From improved insulation and reduced HVAC costs to increased building value and lower environmental impact, the benefits extend far beyond the visible frame.
As energy prices continue to rise and climate-conscious construction becomes the norm, thermal break strips are no longer an optional upgrade but an essential part of responsible, cost-effective building design. Whether in residential homes or commercial skyscrapers, the investment in thermal break technology translates into real-world savings and a more sustainable future.
If you’re planning a building project or looking to improve the energy efficiency of your property, it’s worth asking: Do your window and façade systems include thermal break strips? If not, the numbers suggest you’re leaving money on the table—month after month, year after year.
