Author: Site Editor Publish Time: 2026-05-11 Origin: Site
Increasingly stringent energy codes and extreme climate fluctuations demand high-performance fenestration systems. Architects and builders face mounting pressure to deliver superior energy efficiency. They must do this without compromising aesthetic appeal or structural integrity. You simply cannot meet modern building standards using outdated window technologies.
Aluminum frames pose a distinct challenge. They are highly conductive by nature. This conductivity creates obvious "thermal bridges" across the window profile. These bridges pull expensive heat out of a building during winter. In summer, they draw unwanted external heat indoors. This continuous transfer severely compromises the entire building envelope's efficiency.
Modern polyamide thermal breaks (often referred to as thermal struts in North America) act as highly robust structural insulators. They physically disrupt this heat flow. We designed this guide to provide architects, fabricators, and commercial buyers with an evidence-based framework. You will learn how to evaluate polyamide technology against legacy insulation methods. We will examine structural integrity, thermal performance, and manufacturing scalability.
Exceptional Insulation: Polyamide reduces thermal conductivity to approximately 0.3 W/mK, cutting heat transfer through aluminum frames by up to 85%.
Structural Stability: Reinforced with 25–30% glass fiber (PA66-GF25), polyamide matches the thermal expansion rate of aluminum, preventing cracking or deformation during extreme temperature shifts.
Superior Design Flexibility: Unlike liquid resin options, mechanical polyamide struts allow for independent, dual-color finishing on interior and exterior profiles before assembly.
Proven Longevity: Mitigates the "dry-shrinkage" and water leakage risks historically associated with traditional poured polyurethane systems.
Continuous aluminum framing naturally acts as a rapid conduit for thermal energy. Heat always seeks the path of least resistance. In winter, interior warmth travels through the solid aluminum directly to the freezing exterior. In summer, the reverse happens. Solar heat bakes the outer metal and flows quickly inside. Inserting a rigid, non-conductive barrier physically "breaks" this transfer. This separation isolates the interior metal from the exterior metal. The physical gap stops rapid temperature equalization dead in its tracks.

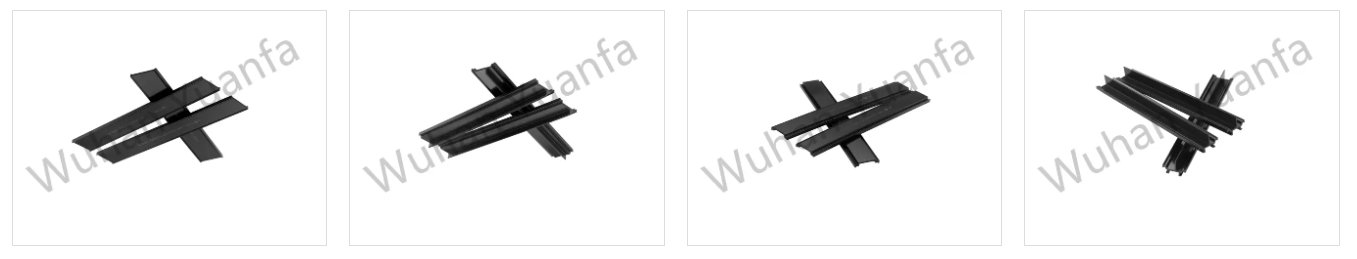

You cannot use standard nylon for this application. Basic plastics lack the necessary rigidity to support heavy glass panes against high wind loads. Manufacturers must use Polyamide 66 infused with 25–30% glass fibers (PA66-GF25). This specific glass-reinforced blend transforms a simple plastic into a structural component. The glass fibers lock the molecular structure into place. They give the Thermal break polyamide strip immense strength. This prevents it from snapping or bending under sheer stress.
Engineering facts validate this technology. Polyamide offers incredible resistance to heat flow compared to untreated metal. Its thermal conductivity sits at roughly 0.3 W/mK. Standard aluminum conducts heat at about 237 W/mK. This means glass-reinforced polyamide is hundreds of times more resistant to heat flow. The resulting thermal barrier drastically reduces energy loss.
Material | Thermal Conductivity (W/mK) | Insulation Rating |
|---|---|---|
Standard Aluminum | ~ 237.0 | Very Poor |
Carbon Steel | ~ 50.0 | Poor |
Glass | ~ 1.0 | Moderate |
Polyamide (PA66-GF25) | ~ 0.3 | Excellent |
Industry terminology often confuses buyers, especially in the North American market. Polyurethane systems usually carry the label "Thermal Breaks." We also call this the Pour & Debridge (P&D) method. Conversely, the market terms polyamide systems as "Thermal Struts." Despite the different names, both technologies aim to insulate metal frames. However, they use radically different mechanical principles to achieve this goal.
The Coefficient of Thermal Expansion (CTE) dictates how much a material grows or shrinks as temperatures change. This metric separates adequate systems from superior ones. Aluminum has a CTE of approximately 2.2×10^-5/K. PA66-GF25 closely aligns at ~2.5×10^-5/K. They expand and contract together at nearly identical rates. Polyurethane expands and contracts at a vastly different rate of ~15×10^-5/K. This severe mismatch causes intense internal stress inside the window frame.
Material Type | CTE Value (10^-5/K) | Compatibility with Aluminum |
|---|---|---|
Aluminum Frame | 2.2 | Baseline |
Polyamide (PA66-GF25) | 2.5 | High (Moves in unison) |
Polyurethane (P&D) | 15.0 | Low (Prone to shearing) |
This CTE mismatch presents serious historical problems for P&D systems. Over years of seasonal freezing and baking, the polyurethane pulls away from the aluminum. Industry experts call this "dry-shrinkage." This pulling causes structural shearing. Micro-gaps open up within the profile. Eventually, moisture penetrates these hidden gaps. Rainwater leaks into the building envelope. Polyamide mitigates this risk entirely. Because it expands and contracts in exact unison with the metal, the seal remains permanent and watertight.
Commercial applications demand flawless structural performance. A failing window frame on a skyscraper creates catastrophic liabilities. High-rise curtainwalls face extreme environmental abuse daily. They must resist severe wind loads up to 2.5 kPa. They also require robust seismic flexibility. Structural insulators cannot just block heat; they must hold the building exterior together safely under heavy, dynamic pressure.
Buyers must demand verifiable benchmark engineering standards. Do not guess on structural integrity. Look for these specific mechanical metrics when specifying thermal struts:
Minimum shear strength: Must exceed 35 MPa to withstand aggressive wind pressures.
Tensile modulus: Should be ≥3,000 MPa to prevent bending or warping under heavy glass loads.
Compressive creep resistance: Must resist continuous load deformation over decades of use.
Building facades endure brutal surface temperatures. A dark aluminum frame in direct summer sunlight easily exceeds 80°C. In northern winters, it plunges below freezing. Glass-reinforced polyamide maintains full dimensional stability across these fluctuations. It resists brittleness and warping from -40°C all the way up to 120°C. Legacy plastics like standard PVC degrade and snap under such extremes.
Physical thermal barriers translate directly into quantifiable commercial outcomes. Polyamide strips dramatically lower the overall U-factor of the fenestration system. The U-factor measures how well a window prevents heat from escaping. Lowering this metric directly reduces commercial HVAC workloads. Less heating and cooling strain leads to lower monthly utility bills. The initial material upgrade pays for itself steadily through ongoing energy savings.
A poorly insulated window frame turns freezing cold on the inside during winter. Warm indoor air hits this cold metal. Condensation immediately forms. Water drips down the walls and pools on sills. This constant moisture breeds toxic black mold. Mold creates serious tenant satisfaction issues and long-term maintenance liabilities. Polyamide struts keep the interior aluminum surface warm. This eliminates condensation entirely, keeping interiors dry, safe, and healthy.
Polyamide delivers a critical aesthetic and logistical benefit. Poured liquid systems lock you into finishing the entire frame as one unit. Polyamide struts mechanically join two separate, pre-finished extrusions. This means manufacturers can apply different powder coatings or anodized finishes to the interior and exterior halves before assembly. You might want a sleek black exterior to match the facade, but a clean white interior to match tenant walls. Mechanical struts make this dual-color process cheap and easy.
Fabricators often wonder about production complexity. The assembly sequence relies on precise machinery rather than messy chemical curing. This demystifies production and speeds up factory output.
Knurling: Machines create sharp "teeth" inside the aluminum profile pocket. These teeth grip the plastic deeply to prevent longitudinal slippage.
Insertion: Workers or automated pushers slide the rigid polyamide strips into the continuous metal channels.
Crimping/Rolling: Heavy steel discs mechanically lock the aluminum over the strut. This applies immense pressure, forming a permanent, rigid composite profile.
Smart manufacturers love the modularity of polyamide systems. You do not need multiple expensive aluminum dies to achieve different energy ratings. You simply use a single aluminum die design. By swapping in wider polyamide strips, you instantly increase the insulation value. Fabricators scale their product lines easily using strips ranging from a narrow 15mm up to 32mm or more. Wider strips mean a larger physical gap, resulting in superior thermal resistance.
Despite the streamlined process, poor quality control introduces risks. Fabricators must monitor the knurling phase obsessively. If the machine cuts the aluminum teeth too shallowly, the plastic strip will slip under heavy load. Furthermore, inadequate rolling pressure during the crimping phase compromises the sheer strength of the final composite window. Strict factory calibration ensures the final assembly passes all wind and structural tests.
Specifying glass-reinforced polyamide strips provides a massive strategic advantage for commercial and high-performance residential fenestration projects.
They eliminate the dry-shrinkage and shear-stress risks associated with legacy polyurethane Pour & Debridge systems.
The technology enables effortless dual-color design flexibility by keeping interior and exterior extrusions separate until final assembly.
While initial upfront material costs might slightly exceed legacy systems, the resulting energy efficiency and structural longevity easily justify the investment.
Your next step should involve a thorough review of your local climate codes. Encourage your decision-makers to consult directly with extrusion partners or thermal break manufacturers. They can help you specify the exact strut depth and structural geometry required to hit your desired U-factor ratings.
A: They offer a 30+ year expected lifespan. ISO and ASTM aging tests show that glass-reinforced polyamide retains up to 98% of its original structural integrity and insulation capability even after thousands of extreme thermal cycles.
A: Yes. Polyamide 66 has a high melting point of approximately 220°C. Unlike certain poured resins or cheaper plastics, it does not release highly toxic gases upon combustion, making it safer for high-rise commercial applications.
A: Standard PVC lacks essential structural load-bearing capacity and degrades rapidly under UV exposure. PVC loses up to 70% of its insulation capability after cyclic thermal stress. Polyamide withstands immense shear forces and matches aluminum's thermal expansion rate perfectly.
